    Electric Vehicle Charging Pile Impulse Voltages Generator Tester

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1104-20KV
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Electric Vehicle Charging Pile Impulse Voltages Generator Tester


    Electric Vehicle Charging Pile Impulse Voltages Generator



    Complied Standards & Clauses for Electric Vehicle Charging Pile Impulse Voltages Generator



    The Impulse Test Generator conforms to the standard requirements of IEC 60664-1 clause 6.2.2.1, required by IEC 61851-1 clause 12.7 and IEC 61851-23 clause 11.4, etc.


    It is used to verify that the appliances shall withstand the transient over-voltages to which they may be subjected. The impulse voltage test is a destructive test in which a breakdown occurs if the test specimen cannot withstand the applied voltage. When the sample breaks down, sparks and discharge sounds will be generated. The peak voltage of the instrument will drop significantly (close to zero) when it is no-load. When the same voltage is applied again, the above phenomenon will occur.



    Technical Parameters for Electric Vehicle Charging Pile Impulse Voltages Generator



    ModelSN1104-20KV
    DC high voltage20kV (Max) ±5%
    Impulse voltage wave

    Impulse wavefront time: 1.2 µs ± 30 %;

    Half value of after wave time: 50 µs ± 20 %

    Please note that the waveform should be checked on an external oscilloscope

    Instrument internal resistance2Ω ± 10%and 500Ω± 10%

    Peak voltage:

    300 V~ 20kV

    300V-20kV, Low: 300 V~ 2,500V, High: 2,500 V~ 20kV
    Impact interval time1 ~ 99s can be preset
    Impact cycles1 ~ 9999
    PolarityPositive and negative
    Working power sourceRated voltage: ~ 220V±10%, 50/60Hz
    Use environmentTemperature: 15°C-35°C, relative humidity 10%-75%
    Dimension600mm×570mm×1500mm
    Weight90 KG
    Electric Vehicle Charging Pile Impulse Voltages Generator Detail

    Electric Vehicle Charging Pile Impulse Voltages Generator Tester

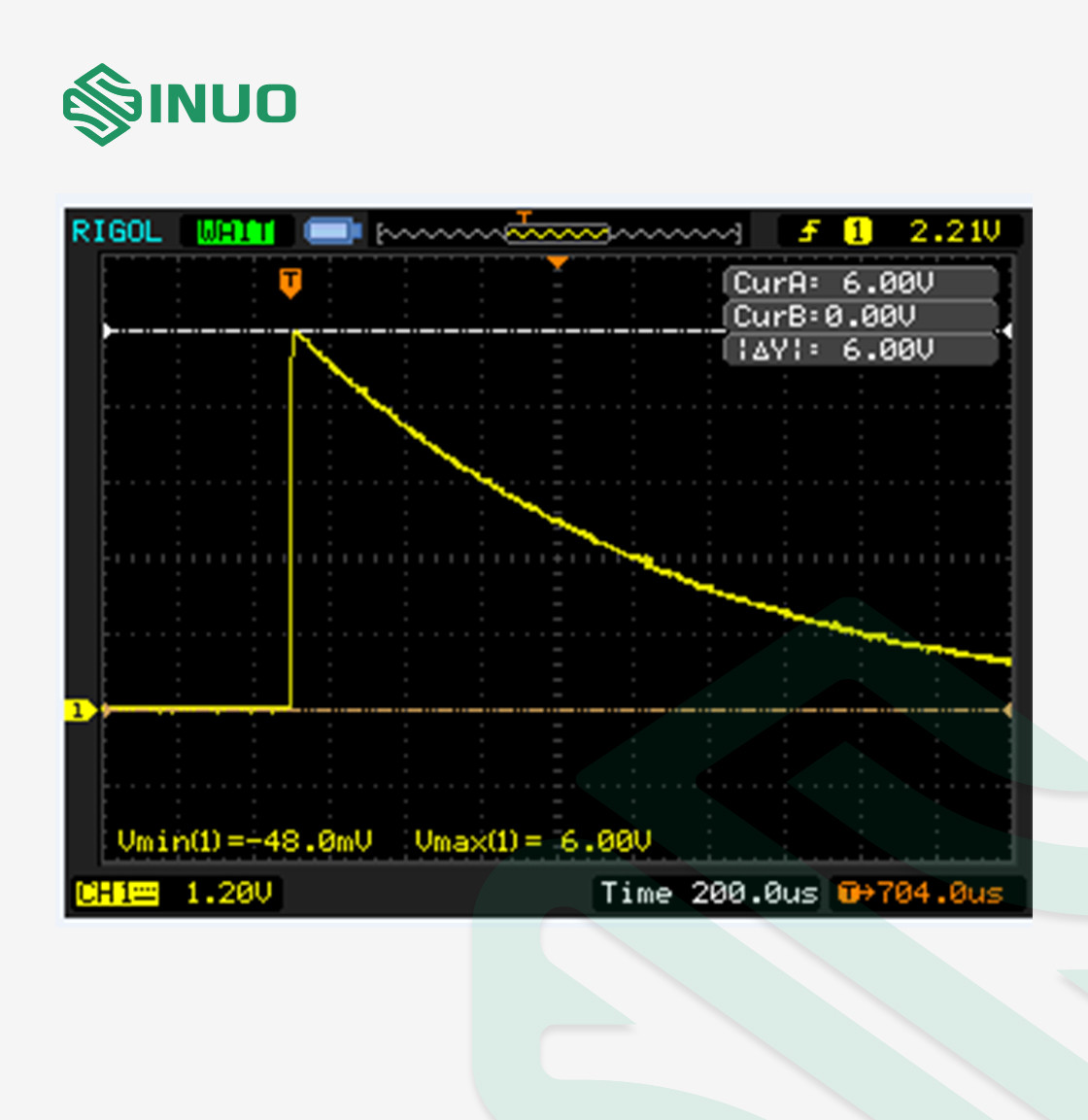

    6kV open circuit voltage output waveform (1000:1)

    Please note that the waveform should be checked on an external oscilloscope
