IEC62196 Electric Vehicle Label Marking Abrasion Test Apparatus

Complied Standards & Clauses

IEC 62196-1: 2020 Ed.4CDV clause 8.7, figure 8.

Equipment Overview

This label marking abrasion test apparatus conforms to IEC 62196-1Ed.4CDV clause 8.7, figure 8. It is used to verify the durability of marking.

The test is made by rubbing the marking for 15 s with a piece of cotton cloth soaked with water and again for 15 s with a piece of cotton cloth soaked with n-hexane 95 % (Chemical Abstracts Service Registry Number, CAS RN, 110-54-3).

The marking surface to be tested shall be dried after the test with water.

Rubbing shall commence immediately after soaking the piece of cotton, applying compression force of (5 ± 1) N at a rate of about one cycle per second (a cycle comprising forward and backward movement along the length of the marking). For markings longer than 20 mm, Rubbing can be limited to a part of the marking, over a path of at least 20 mm length.

The compression force is applied by means of a test piston which is wrapped with cotton comprising cotton wool covered by a piece of cotton medical gauze.

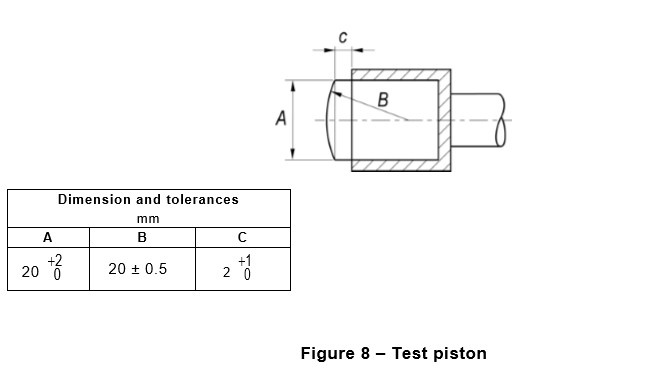

The test piston shall have the dimensions specified in Figure 8 and shall be made of an elastic material which is inert against the test liquids and has a Shore-A hardness of 47 ± 5 (for example synthetic rubber).
