    EVSE EV Charging Pole Electric Vehicle Charging Test Equipment IPXXD Test Wire

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2210-4
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100 pcs/month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    EVSE EV Charging Pole Electric Vehicle Charging Test Equipment IPXXD Test Wire


    EVSE Testing Equipment Electric Vehicle Charging Pole IPXXD Test Wire


    Equipment Overview


    This is a precision test finger made in accordance the requirements of IEC 61032 test probe D, required by many standard such as IEC 61851-1 clause 8 and 12.4, IEC 60529 IP4, etc.


    This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

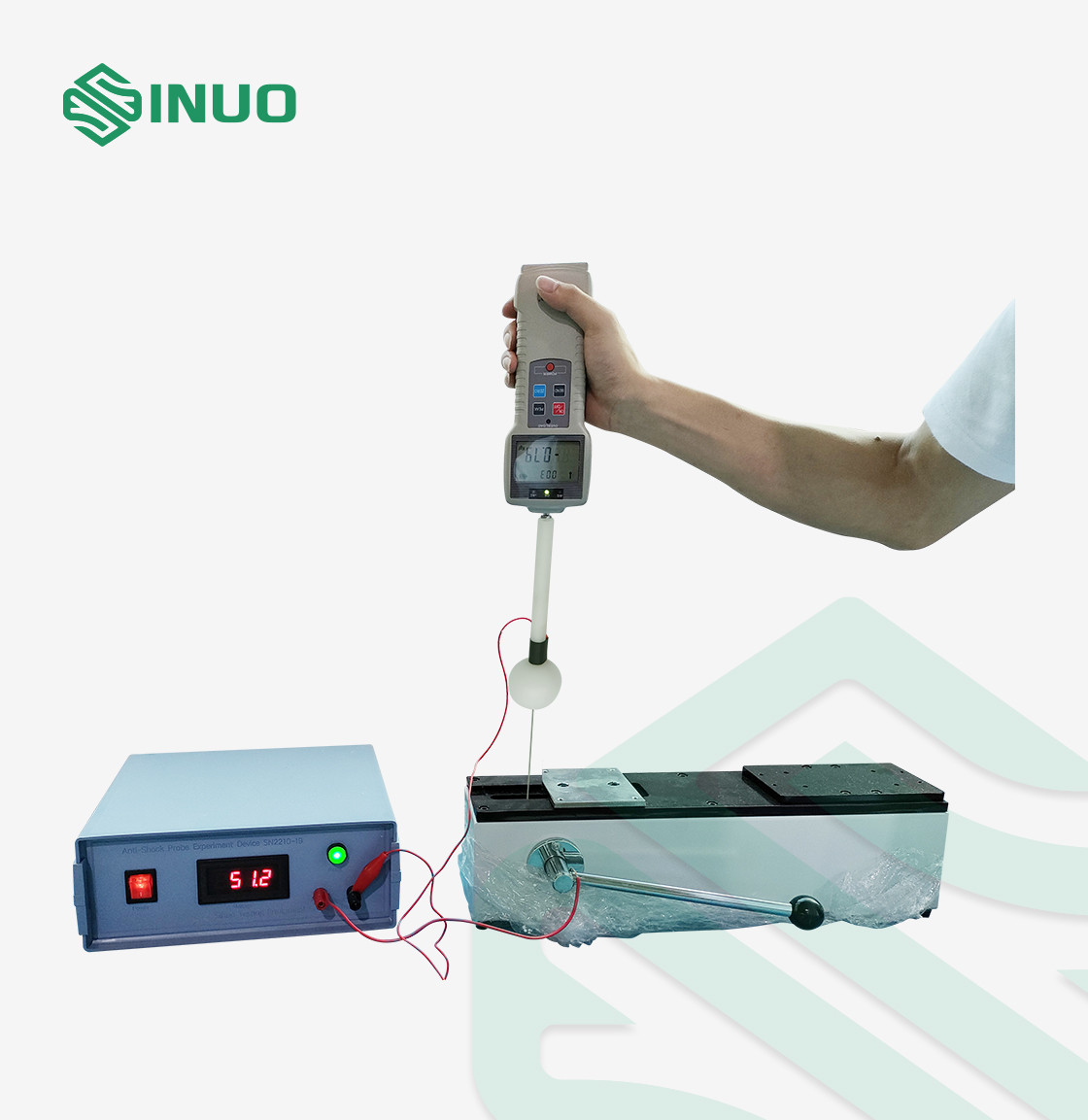

    It comes with an alligator clip, and with a M6 hole at the end of the handle for connecting with pull and push gauge to achieve specific force.

    Technical Parameters


    Parameters /ModelSN2210-4
    NameTest rod probe D
    Test Wire DiameterФ1+0.05 0 (mm)
    Stop Face DiameterSФ35±0.2 (mm)
    Handle DiameterФ10 (mm)
    Test Wire Length100±0.2 (mm)
    Handle Length100 (mm)
    Detail

    EVSE EV Charging Pole Electric Vehicle Charging Test Equipment IPXXD Test Wire
