ISO 11507 Electric Vehicle Paints And Varnishes UV Weathering
Accelerated Ageing Test Chamber
Complied Standards & Clauses
ISO 11507 -2007 “Paints and varnishes — Exposure of coatings to artificial
weathering — Exposure to fluorescent UV lamps and water”
ASTM G154 “Standard Practice for Operating Fluorescent
Ultraviolet(UV)Lamp Apparatus for Exposure of Nonmetallic
Materials1”
ISO 4892-1-2016 “Plastics-Methods of exposure to laboratory light
sources-Part 1: General guidance”
ASTMD 4329-2005 “Standard Practice for Fluorescent UV Exposure of
Plastic”
Equipment Overview
It is used for simulating sunlight, rain, and dew environment, to
inspect the damages to samples (including but not limited as
coating, ink, paint, resin, plastic, rubber, printing and
packaging, aluminum profiles, adhesives, automobile and motorcycle
components, cosmetics, metal, electronics, electroplating,
medicine, etc.) caused by sunlight, rain, and dew.
Test principle: Fluorescent UV lamps can reproduce the influence of
sunlight, condensation and water sprinkler systems reproduce the
effects of dew and rain, the material is tested in a cyclical
program of alternating light and moisture at a certain temperature.
UV can reproduce the hazards of outdoor months to years in a matter
of days or weeks. Types of hazards include: color fading,
discoloration, loss of light, chalking, cracking, turbidity, air
bubbles, embrittlement, strength decay, and oxidation.
Technical Parameters

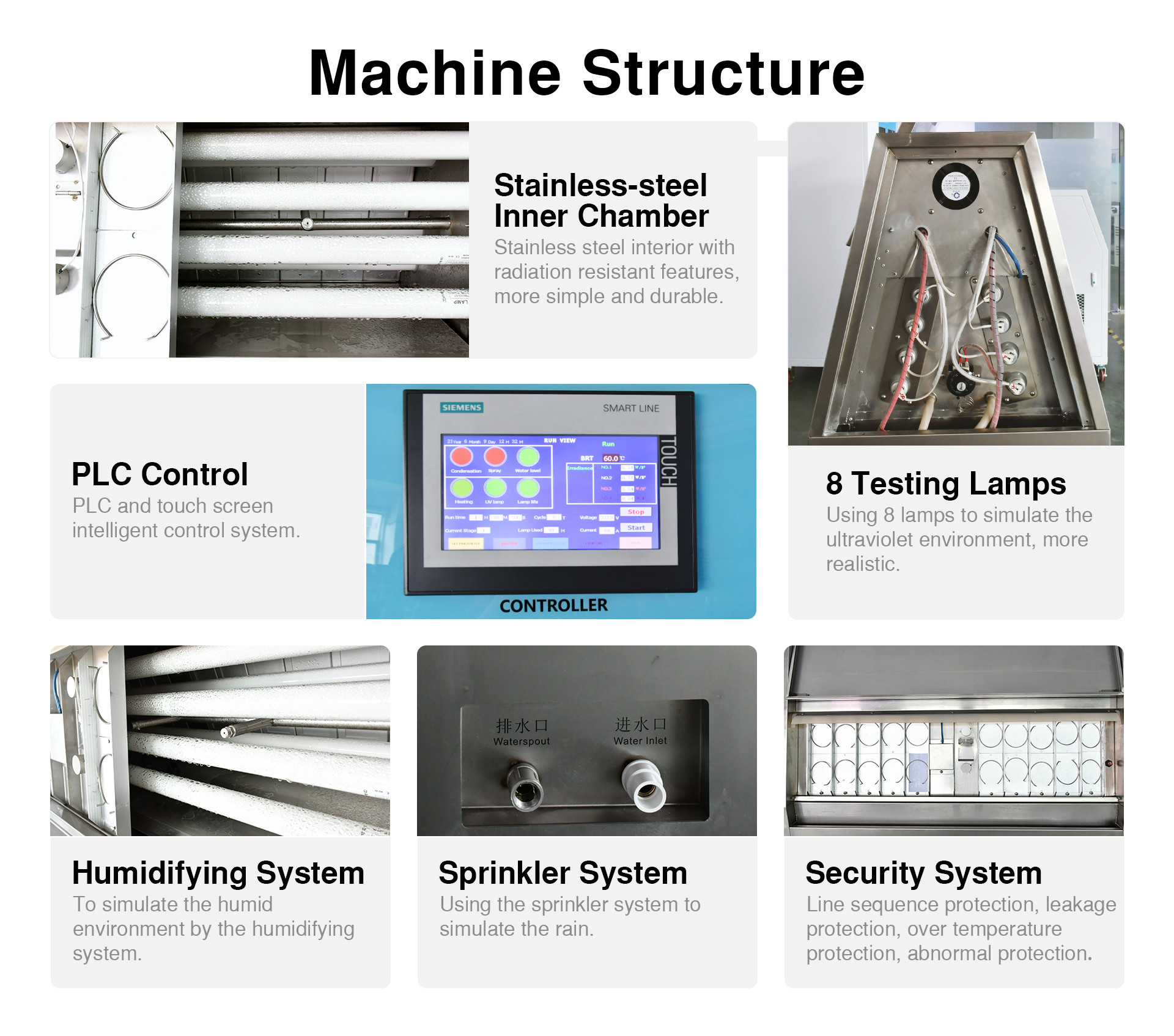

| Control & Operation | PLC and touch screen intelligent control system |
| Chamber Size | Inner size: WDH=1140×500×400mm Outer size: WDH=1400×660×1550mm, made of SUS304 stainless steel |
Lamp Wavelength (Choose one) | UVA-340, wave band 315-400nm, radioactivity 0.35-1.2W/m2 |
| UVB-313, wave band 280-315nm, radioactivity 0.35-1.2W/m2 |
| UVA-351, wave band 351- 400nm, radioactivity 0.35-1.2W/m2 |
| Number of Lamps | 8 pieces |
| Lamp Power | 40W/pc |
| Lamp Brand | US Q-LAB or domestic |
| Lamp Life | Approximately 1600 hours |
| Base Functions | Temperature, humidity, light, spray, condensation |
| Optional Functions | Irradiance display: with handheld or mounted irradiator (optional) |
| Illuminance adjustment: dimming system |
| Temperature Range | RT+10℃～70℃ |
| Humidity Range | ≥75%RH (under condension test sate, not be controlled) |
| Temperature Uniformity | ≤±3℃ |
| Temperature Fluctuation | ±0.5℃ |
| Blackboard Temperature | 50℃～63℃ |
| Distance between Sample and Lamp | 55mm |
| Center distance Of the Lamp | 65～70mm |
| Standard Test Piece Size | 75×150mm, 42 pcs |
| Irradiation Intensity | Adjustable from 0.35-1.2W/m2 |
| Test Time | 1～9999 H,M,S adjustable |
| Water Source and Consumption | Clean water or distilled water 8 liters / day (should be prepared
by user) |
| Main Components | French Schneider and Japan Omron |
| Irradiation Sensor | Imported intelligent irradiation sensor, 0-5V signal output |
| Security System | Line sequence protection, leakage protection, over temperature
protection, abnormal protection |
Questions & Answers
Q: What is the daily water consumption?
A:Clean water or distilled water 8 Liters/day (should be prepared
by user)
Q: What is the distance between the sample and the test lamp?
A: 55 mm.
Q: What is the Standard Test Piece Size?
A: It's 75×150mm/ PC, and It can test 42 PCS once.
