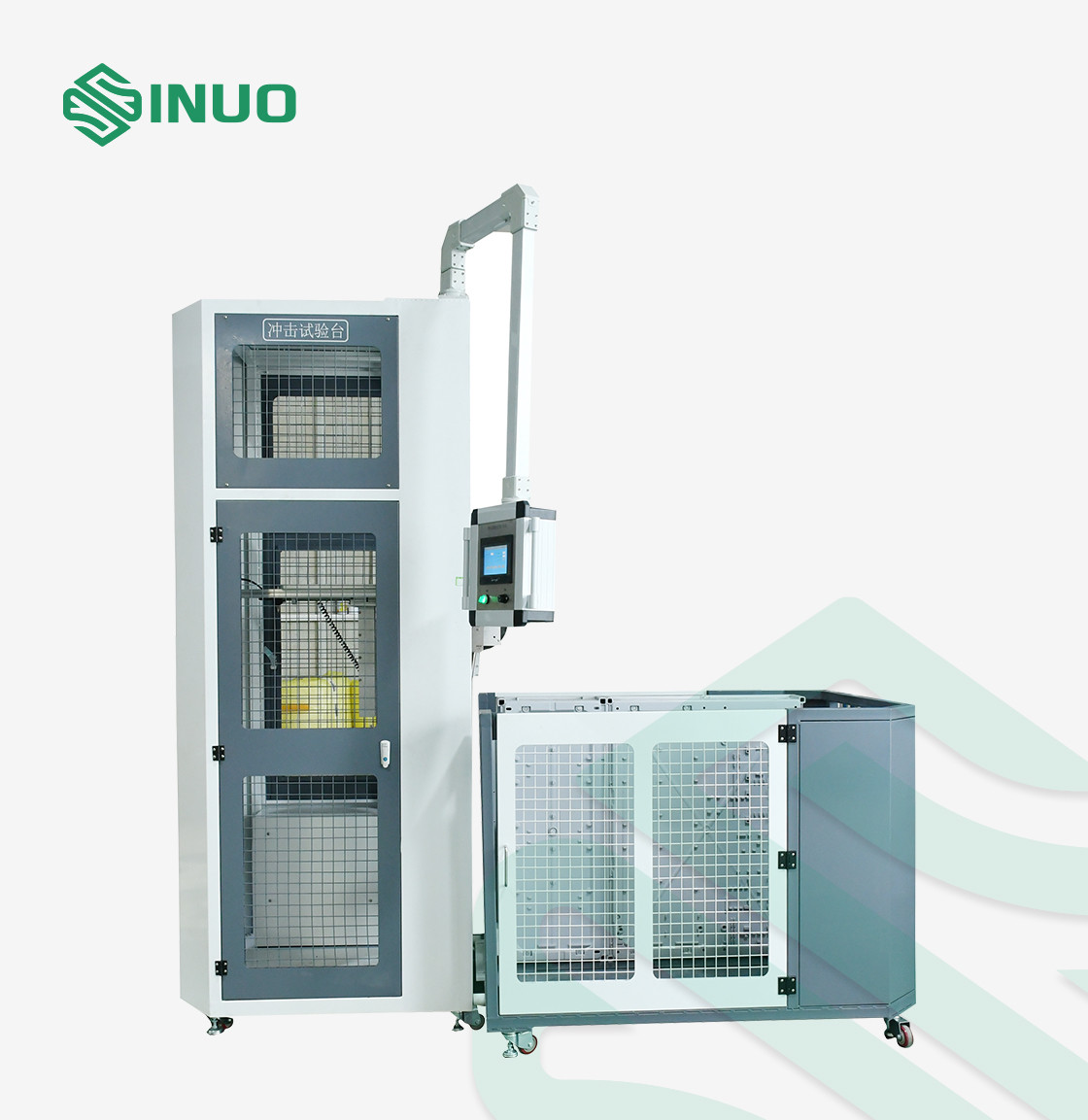

    IEC 61851 Electric Vehicle EVSE Test Equipment Mechanical Strength Impact Tester

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2122C
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Delivery Time : 30 days
    Supply Ability : 10 sets/month
    Price : Customized
    • Product Details
    • Company Profile

    IEC 61851 Electric Vehicle EVSE Test Equipment Mechanical Strength Impact Tester


    IEC 61851 Electric Vehicle Supply Equipment EVSE Mechanical Strength Impact Test Equipment

    Complied Standards & Clauses



    This mechanical strength inpact test equipment complied to IEC 61851-1 2017 clause 12.11 standards.

    Technical Parameters


    Control and operationPLC control, 7-inch color touch screen control, remote control remote control.
    Drive modeMotor + reducer mechanism
    Pendulum impact
    Impact forceStandard 5J (10J, 20J, 50J optional)
    Pendulum mass accuracy±1%
    Equivalent mass of impact hammer1.7kg (5 kg, 5 kg, 10 kg are optional)
    Impact hammer formSpherical impact hammer
    Pendulum striking point height adjustment range:Customized according to the sample
    Pedulum arm height adjustment range200-500mm
    Specimen clamping adjustment rangeCustomized according to the sample
    Impact point height adjustmentElectric adjustable
    Number of impacts0-9999 times can be preset
    Status indicationLED indicator
    Pendulum height (energy) adjustmentManual adjustment
    Pendulum positioningElectromagnet adsorption
    Pendulum releaseWireless remote control or touch screen operation
    Impact point height adjustment methodWireless remote control or touch screen operation
    Security360° all-round safety protection, automatic electric brake to prevent secondary impact
    Vertical impact
    Impact forceStandard 5J (10J, 20J, 50J optional)
    Installation methodThe hammer head is adsorbed by electromagnet, and the conduit is screw-in type
    Release methodButton control, electromagnet momentary release
    Hammer releaseRemote control
    Height adjustment methodRemote control

    Equipment Overview



    1. Main purpose: This device is composed of two kinds of impact test apparatuses, and two kinds of mechanical strength test methods can be used to perform impact test on EVSE shell.

    2. Installation sample: installation of a single sample is less than 1min

    3. Applicable sample size:
    Minimum (length × width × height, unit mm): customized according to the sample
    Maximum (length × width × height, unit mm): customized according to the sample


    4. The impact energy is formed by releasing the pendulum through the electromagnet; and it has automatic electric brake to prevent secondary impact;

    5. The equipment is controlled by PLC, controlled by touch screen and remote control, and the height of the strike point can be adjusted by electric lift;

    6. The adjustment of the striking height and the release of the striking element can be controlled remotely

    7. The sample mounting seat is welded by high-strength steel plate and channel steel, which has the characteristics of high strength and impact resistance. The sample to be tested is fixed with a manual screw rod.

    IEC 61851 Electric Vehicle EVSE Test Equipment Mechanical Strength Impact Tester

    IEC 61851 Electric Vehicle EVSE Test Equipment Mechanical Strength Impact Tester
