    IEC 60695-2-20 Hot Wire Ignition Coil Flammability Testing Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN778
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Delivery Time : 30 days
    Price : Customized
    Supply Ability : 30 sets/month
    • Product Details
    • Company Profile

    IEC 60695-2-20 Hot Wire Ignition Coil Flammability Testing Equipment


    IEC 60695-2-20 Hot Wire Ignition Coil Test Method Apparatus


    Complied Standards & Clauses


    IEC60695-2-20 “Fire hazard testing - Part 2: Glowing/Hot wire based test methods - Section 20: Hot-wire coil ignitability test on materials”


    Equipment Overview


    Application: Suitable for fire hazard tests on solid electrical insulating materias of information technology equipment, low-voltage switchgear and control equipment parts, etc., simulate the thermal stress caused by hot components or overload resistance or ignition sources in a short time.


    Test Principle: Adopts the electric heating wire of specific size (ф0.5mm length 250mm) and specific material (Ni80/Cr20). After the specified heating power (0.26W/mm) and the specified time (8s~12s) are pre-annealed, according to a certain winding tension (5.4N) and a certain winding distance (6 or 6.35mm), wind 5 full turns on the sample, test the sample with electric heating wire under the specified heating power (0.26W/mm) for 120s, and evaluate its fire hazard based on whether the sample is ignited or ignition time


    Structure: Chamber structure, with fume hood.


    Technical Parameters


    Control & Operation method

    Electrical control, button operation

    (PLC control touch screen operation is optional)

    Hot-wireф0.5mm,Ni80/Cr20,length 250mm±5mm, cold resistance 5.28Ω/m
    Annealing Bracket Spacing250mm
    The Distance and Height of The Sample Holder70mm,height 60mm (the distance from the surface of the support to the surface of the receiving tray)
    Winding Tension and Winding Pitch5.4N±0.05N, 6.35mm±0.5mm (with 5 full circles within 31.5mm±0.5mm, 6mm as per China national standard)
    Annealing Time and Power8s~12s (1s~999.9s digital display can be preset), 0.26W/mm±4% (digital display can be adjusted)
    Test Time and Power120s (1s~999.9s digital display can be preset), 0.26W/mm±4% (digital display can be adjusted)
    Sample SizeL×W×H:(125 ± 5mm) ×(13.0 ± 0.5mm) ×(0.75+0.075 0mm,1.5+0.15 0mm,3+0.3 0mm)[ 0.75± 0.1 mm,1.5± 0.1 mm,3± 0.2 mm as per China national standard]
    During TestAutomatic control of test program, independent ventilation
    Equipped with Test Chamber Lighting, With ControlEquipped with a light, with control
    Test Chamber and External Dimensions>0.5 cubic, black matte background, with exhaust fan, dimensions: WDH=1100×550×1200mm, 130kg
    Power supplyMatch client's local power supply requirements

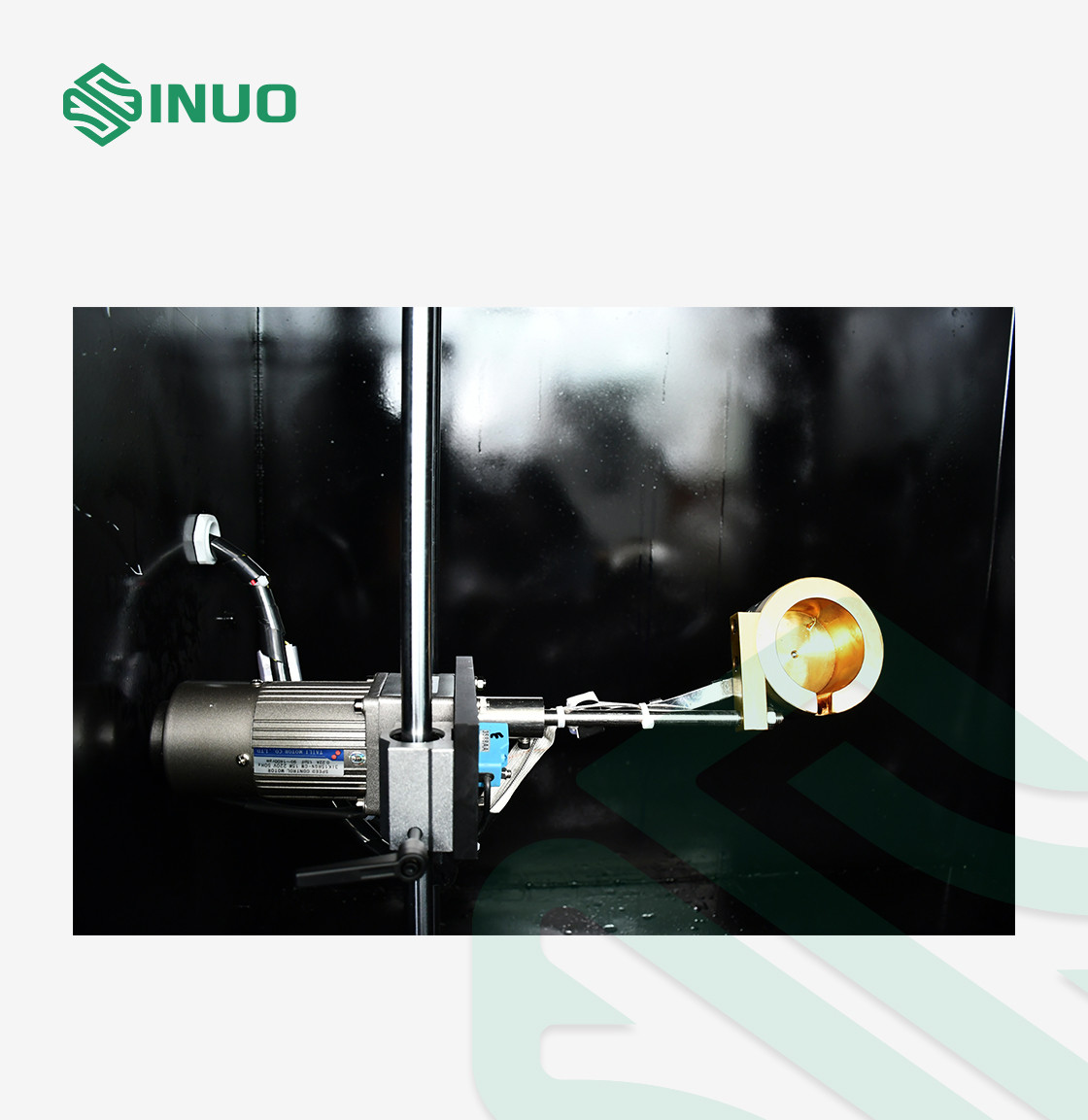

    Details


    IEC 60695-2-20 Hot Wire Ignition Coil Flammability Testing Equipment
