    1KN 20KN EV Battery Testing Equipment UL2580 Lithium Battery Cell Testing Equipment


    UL2580 Electric Vehicle Lithium Battery Cell Crush Testing Equipment


    Complied Standards & Clauses


    UL 2580:2020 STANDARD FOR SAFETY Batteries for Use In Electric Vehicles Annex B2.4 and Annex D3.3


    IEC 62133-2012clause 7.3.6


    UN38.3 ,UL 1642


    Equipment Overview


    Application: It is used to simulate all kinds of batteries in use, transportation, storage, or handling home waste, the battery suffers from squeezing and acupuncture.


    Test Principle:

    Extrusion: Place the battery between two plates,13.0 ± 0.78 kN of extrusion of 13.0 ± 0.78 kN is applied to the plate, and the battery should not occur outside, and fire and explosion.


    Acupuncture:The test should be carried out at ambient temperature of 20 ° C ± 5 ° C,(the contact of the thermocouple is fixed on the large surface of the battery) the battery having a thermocouple is placed in a ventilation cabinet, pierced the center position of the largest surface of the battery with a diameter of 2-8 mm to 10 mm / s to 40 mm / s speed, maintain any time and observe the test result, t The battery does not explode, not fire is qualified.


    Structure: One machine structure, the door uses explosion-proof lock + explosion-proof chain


    Use Environment: System power supply three-phase power supply:AC380V±10%/50Hz 3KW.


    Technical Parameters

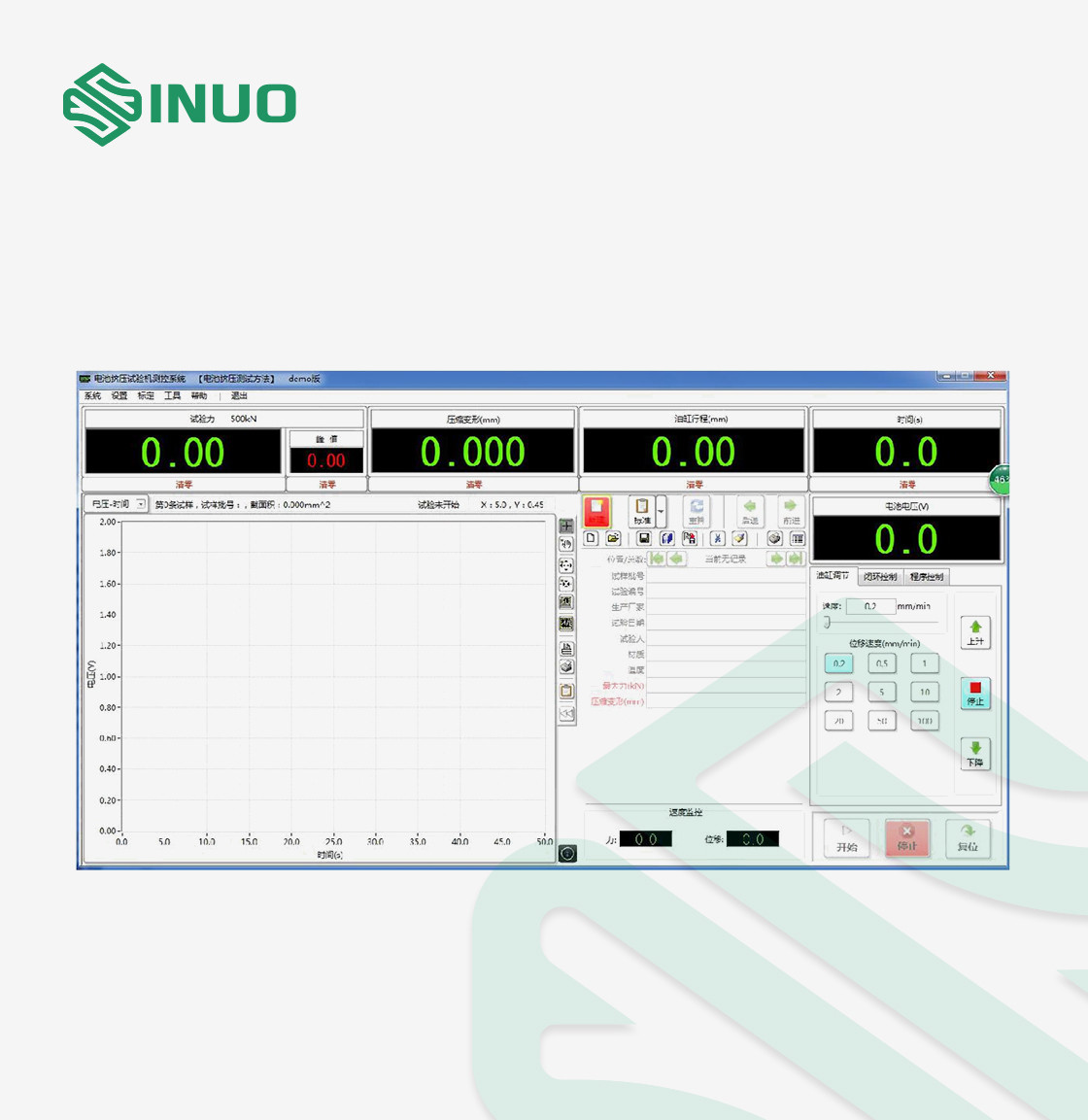

    Control and OperationPLC touch intelligent control system, remote control device.
    Dimensions

    Inner box WDH=500×300×300mm,304 stainless steel

    Outer box WDH=940×780×1620mm,A3 Cold rolled steel plate paint, thickness 1.0mm

    Visual window WH=390×360,20mm Tempered explosion-proof glass + protective steel network double-layer protection

    Drive modeHydraulic pressure
    Unit conversionKg/N/Lb
    Max. pressure1KN-20KN Adjustable, customized according to requirements
    Piston diameter32mm
    Crush/Nail Penetration Range0~200MM
    Crush Accuracy±1%
    Nail Penetration Test speed0-40mm/s(adjustable)
    Battery Extrusion HeadStandard Extrusion Head, Area ≥ 20cm2
    Crushing Time Maintaining0~99hours59minutes59seconds
    Steel Needleφ5mm~φ8mm High temperature steel needle,Length 100mm(Specified).

    USB

    USB Interface

    With USB interface, test data can be exported
    AccessibilityExplosion-proof pressure relief device, smoke exhaust device, explosion-proof chain
    Purchase pieceTemperature capture, voltage collection system, video surveillance system
