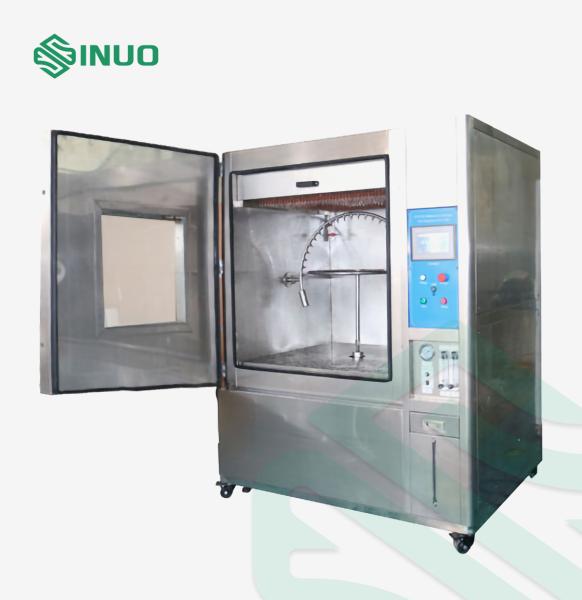

IEC 60529 IPX3 IPX4 Oscillating Tubes Rain Moisture Test Chamber

Complied Standards & Clauses

IEC 60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX3 & IPX4.

Equipment Overview

Structure: The test equipment consists of an oscillating mechanism, an electrical control cabinet and a turntable. The oscillating mechanism is mounted in the chamber, the tube is caused to oscillate by motor driving. The turntable has a rotation speed of 1r/min, to make the enclosure of the specimen to be splashed in all directions. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts chamber structure.

Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.

Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc

Principle: Ensure that the water spraying and splashing speed reaches the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions.

Use Environment:
Power supply: AC220V±5%/50Hz, or match client’s local power supply requirements.
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter

Technical Parameters
