    New Energy Vehicle Electrical Safety Testing Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNE6808C
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Delivery Time : 45 days
    Supply Ability : 10 sets/month
    Price : Customized
    • Product Details
    • Company Profile

    New Energy Vehicle Electrical Safety Testing Equipment


    ISO 6469 New Energy Electric Vehicle Electrical Safety Testing Equipment


    Complied Standards & Clauses


    ISO 6469-1:2019 Electrically propelled road vehicles — Safety specifications — Part 1: Rechargeable energy storage system (RESS)


    Equipment Overview


    New energy vehicle safety inspection is controlled by the host computer control system, which is composed of vehicle test unit, components test unit, potential equalization test unit, and power battery test unit.


    Technical Parameters


    Potential Equalization
    Test method/No-load output voltageFour-wire system
    No-load output voltage<12V
    Output current setting rangeDC:1.00~32.00A, continuously adjustable constant current output
    Output current resolution0.01A
    Output current accuracy1.00~9.99A: ± (1% of setting+0.20A)
    10.00~32.00A: ± (1% of setting)
    Grounding resistance setting rangeUpper limit: 0~630.0mΩ;
    Lower limit: 0~630.0mΩ; 0=off
    Grounding resistance measuring range1.00A≤outpur current≤10.00A, 0.0~600.0mΩ
    10.00A≤outpur current≤20.00A, 0.0~300.0mΩ
    20.00A≤outpur current≤32.00A, 0.0~200.0mΩ
    Grounding resistance measuring resolution0.1 mΩ/1 mΩ
    Grounding voltage measuring range0~10V
    Grounding voltage measuring resolution0.001V
    Resistance to zero0.0~100.0 mΩ
    Grounding voltage measuring accuracy± (1% of reading+3 mΩ)
    Test time setting range0.0, 0.1~999.9s 0.0=Continuous output
    Test time setting resolution0.1S
    Test time setting range accuracy± (1% of setting+0.05s)
    Insulation Resistance Test
    Rated output load current10VA(1000V/10mA) 10mA
    Output voltage rippleResistive load, 1000V/1mA, <5%
    Output voltage setting rangeDC:100~1000V continuous adjustable
    Output voltage setting resolution1V
    Output voltage setting accuracy± (1% of setting+3V)
    Insulation resistance setting rangeUpper limit: 0.0001~10GΩ; ∞ = no upper and lower limit judgement
    Lower limit: 0.0001~10GΩ;
    Insulation resistance measuring range100~499V: 0.1MΩ~1000 MΩ
    500V~1000V: 1.5MΩ~10000 MΩ
    Insulation resistance measuring resolution0.01 MΩ/0.1 MΩ/1 MΩ
    Resistance compensation>30MΩ
    Insulation resistance measuring range0.05~99.99~999.9~3000MΩ
    Insulation resistance measuring accuracy

    100~499V: <100 MΩ: ± (5% of reading+0.5 MΩ)

    100 MΩ~1000 MΩ: ± (10% of reading+5 MΩ)

    500~1000V:1.5 MΩ~100MΩ:± (2% of reading+0.2 MΩ)

    100 MΩ~1999 MΩ: ± (5% of reading+2 MΩ)

    2000 MΩ~10000 MΩ: ± (10% of reading+5 MΩ)

    1000 MΩ~3000 MΩ:± (5% of reading+2digitals)
    Delay time setting range0.5~999.9s
    Test time setting range0.0, 0.1~999.9s, 0.0= Continuous output
    Test time resolution0.1S
    Test time setting accuracy± (1% of setting+0.05s)
    AC Withstand Voltage
    Withstand voltage test typeCold withstand voltage test
    Rated output load200VA (AC: 5000V/40mA )
    Output voltage adjustment rate<2% (no load to full load)
    Output voltage setting rangeAC:100-5000V ;50Hz/60Hz
    Output voltage resolution1V
    Output voltage accuracy±(1% setting value+3V)
    Breakdown current measuring range0.050~9.999~40.00mA
    Breakdown current setting rangeUpper limit: 0.000-9.999- -40.00mA
    Lower limit: 0.000-9.999- -40.00mA 0.000=close
    Breakdown current measuring resolution0.001mA/0.01mA
    Zero current0.000-2.000mA
    Breakdown current measurement accuracy±(1% of reading value + 0.005mA)
    Rise time/slow down time0.0-999.9s
    Test time setting range

    0.0, 0.1-999.9S

    0,0=continuous output

    Test time resolution0.1S
    Test time setting accuracy±(0.1% setting value+0.05s)
    Arc detection1-9 gears (9 is the highest sensitivity)
    DC Withstand Voltage
    Withstand voltage test typeCold withstand voltage test
    Output voltage setting rangeDC:100-6000V
    Output voltage resolution1V
    Output voltage accuracy±(1% setting value+5V)
    Breakdown current setting range

    Upper limit: 0.000-10.00mA;

    Lower limit: 0.000-10.00mA , 0=off

    Breakdown current measurement range0.010-10.00mA
    Breakdown current measurement resolution0.001mA/0.01mA
    Zero current0-2 000mA
    Breakdown current measurement accuracy±(1% of reading value+5 digitals)
    Rise time/slow down time0.0-999.9s
    Test time setting range

    0.0-999.9S

    0.0=continuous output

    Test time resolution0.1S
    Test time setting accuracy±(0.1% setting value+0.05s)
    Arc detection1-9 gears (9 is the highest sensitivity)
    Leakage Current
    Rated load power rangeDetermined by the power of isolation transformer/built-in variable frequency power supply
    Leak type settingSingle phase: static leakage, dynamic leakage
    Output voltage ratio

    1.10 times input voltage (output by isolation transformer)/arbitrarily set voltage (output by variable frequency power supply)


    Output voltage setting rangeAC:0.0-300.0V
    Output voltage setting measuring rangeAC:5.0-300.0V
    Output voltage measurement resolution0.1V
    Output voltage measurement accuracy±(1.5% of reading value+3V)
    Leakage current impedance
    Leakage current setting range

    Upper limit: 0.000-5.000mA;

    Lower limit: 0.000-5.000mA

    0.000=off

    Leakage current measurement rangeThe current test range is 0.050-5.000mA
    Leakage current measurement resolution0.001mA
    Zero current0.000-2.000mA
    Leakage current measurement accuracy± (1.5% of reading value + 0.005mA)
    Test time setting range

    0.0, 0.5-999.9S

    0.0=continuous output

    Test time resolution0.1S
    Test time setting accuracy± (0.1% setting value+0.05s)
    Slow Charge Function (Optional)
    Output voltage setting rangeAC:0.0-300.0V
    Output voltage measurement rangeAC: 5.0~300.0V
    Output voltage resolution0.1V
    Output voltage measurement accuracy±(0.25% of reading value+0.25% of measuring range)
    Charging current setting range

    6.000-63.00A (that is, the upper limit of current)

    Note: The lower limit of current cannot be set, it is fixed to 0

    Measuring current setting rangeUpper and lower limits: 0.000-9.999-75.00A
    Current measuring range0.050~9.999~75.00A
    Current measuring resolution0.001A/0.01A
    Current measuring accuracy±(0.25% of reading value+0.25% of measuring range)
    Power factor measuring range0.100~1.000
    Power factor measuring resolution0.001
    Power factor upper limit setting range0.000~1.000
    Power factor lower limit setting range0.000~1.000
    Power factor measuring accuracy±(0.5% of reading value+0.01)
    Delay time0.2~999.9S
    Test time setting range

    0.0, 0.1-999.9S

    0.0=continuous output

    Test time resolution0.1S
    Test time accuracy±(0.1% of setting value+0.05s)
    Low voltage slow charge test (Optional)
    Rated load power rangeDetermined by the power of isolation transformer/built-in variable frequency power supply
    Output voltage ratio

    0.85 times input voltage (output by isolation transformer)/arbitrarily set voltage (output by variable frequency power supply)


    Output voltage setting rangeAC:0.0-300.0V
    Output voltage measurement rangeAC: 5.0~300.0V
    Output voltage resolution0.1V
    Output voltage measurement accuracy±(0.25% of reading value+0.25% of measuring range)
    Charging current setting range

    6.000-63.00A (that is, the upper limit of current)

    Note: The lower limit of current cannot be set, it is fixed to 0

    Delay time0.2~999.9S
    Test time setting range

    0.0, 0.1-999.9S

    0.0=continuous output

    Test time resolution0.1S
    Test time accuracy±(0.1% of setting value+0.05s)
    Fast Charge Function (Optional)
    Comprehensive measurement of charging output voltageDC:200.0-500.0V
    Comprehensive measurement of charging output current≤50A
    Charge resolution0.01KW.h
    SOC0~100%
    Plug temperature setting range0~100°C
    Plug temperature resolution1°C
    Battery temperature measurement range0~150°C
    Test time setting range

    0.0, 0.1-999.9min

    0.0=continuous output

    Test time resolution0.1min
    Test time accuracy±(0.1% of setting value+0.05min)
    Battery Pack /Whole Vehicle Insulation Test
    Insulation resistance setting range

    Upper limit 0.00-100.0MΩ 0=close,

    lower limit 0.00- 100 00MΩ

    Insulation resistance measurement range0.20- 100.00MΩ
    Insulation resistance measurement resolution0.01 MΩ
    Insulation resistance measurement accuracy±(5% reading value + 0.03% of measuring range)
    Test time setting range4.0~999.9S
    Test time resolution0.1S
    Test time setting accuracy±(0.1% setting value+0.05s)

    Questions & Answers


    Q: What is for vehicle test unit:

    A: It contains:

    1. Fast charging port: DC withstand voltage, insulation resistance, DC grounding (potential equalization), fast charging function, whole vehicle insulation resistance, insulation test verification

    2. Slow charging port: AC withstand voltage, insulation resistance, AC grounding, leakage current, slow charging function


    Q: What is for components testing unit:

    A: AC withstand voltage, insulation resistance.


    A:What is for potential equalization unit:

    Q:It contains:

    1. The resistance between the negative grounding point of the battery and the PEU shell

    2. The resistance between the negative ground point of the battery and the housing of the drive motor

    3. The resistance between the battery negative ground point and the charger shell

    4. The resistance between the negative ground point of the battery and the PTC

    5. The resistance between the negative grounding point of the battery and the air-conditioning compressor housing

    6. The resistance between the battery negative grounding point and the steering motor housing

    7. The resistance between the negative ground point of the battery and the air pump casing

    8. The resistance between the battery negative ground point and the fastening screw of the battery cover


    New Energy Vehicle Electrical Safety Testing Equipment

    A: What is for power battery PEESS unit:
    Q: It contains:

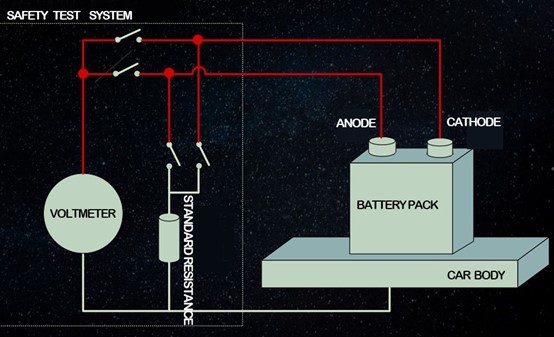

    By measuring the voltage value, the standard resistance is known, and the battery pack insulation is calculated according to the GT/18384.1-2015 formula.

    The known standard tester for testing is built in the test system, and the test wiring changes during the whole test process are inside the test system, and the automatic switching is completed without manual wiring changes.


    New Energy Vehicle Electrical Safety Testing Equipment
