    1000A EV Battery Testing Equipment UL2580 Cells External Short Circuit Testing Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN551
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Delivery Time : 30 days
    Price : Customized
    Supply Ability : 30 sets/month
    • Product Details
    • Company Profile

    1000A EV Battery Testing Equipment UL2580 Cells External Short Circuit Testing Equipment


    UL2580 Electric Vehicle Lithium-Ion Cells External Short Circuit Testing Equipment

    Complied Standards & Clauses


    UL2580 BATTERIES FOR SAFETY Batteries for Use In Electric Vehicles Annex B2.7 and D3.1

    IEC 62133-2012clause 7.3.2

    GB31241-2014clause 6.1, 6.2

    UN38.3 ,UL 2054,QC/T 744-2006,QC/T 743-2006 and etc.

    Equipment Overview


    Test Principle: This battery external short circuit testing equipment is temperature controlled type, it meets the requirement that the short circuit device must conform to the range of internal resistance ≤5mΩ, to obtain the maximum short-circuit current required by the test, In addition, the circuit design of the short-circuit device must also be able to withstand the impact of large currents, so the industrial grade DC electromagnetic contactors, all-copper terminals, internal copper plate diversion and thick copper plate are adopted, to effectively improve the cooling effect, thus, the large current short circuit device is safer, and can effectively reduce the loss of test equipment and ensuring the accuracy of test data.

    Structure: One machine structure, the door uses explosion-proof lock + explosion-proof chain

    Use Environment: Power supply: AC220V±10%/50Hz 3KW
    Environment temperature: 5℃~+35℃
    Humidity:≦85%RH There should be no high concentration dust, corrosive gas and flammable and explosive atmosphere.

    Technical Parameters


    Control and OperationPLC touch screen intelligent control system with remote control device
    Dimensions

    Inner Dimension WDH=600×500×600mm,304 stainless steel(thickness 1.0mm)
    Outer Dimension WDH=940×780×1620mm,A3 Cold-Rolled Steel with paint-baking treatment (gray-white color)
    (thickness 1.0mm)
    Observation Window WH=390×360,20mm Three-layer vacuum glass, easy for specimen observation

    Temperature Range0~80℃
    Temperature Deviation≦±2.0℃
    Temperature fluctuation±1.0℃
    Maximum short circuit current1000A
    Internal Resistance System80±20mΩ
    Remote Control DistanceWithout Solid barrier 7m
    Mechanical Endurance300,000 times
    Electrical EnduranceResistance load 50000 times

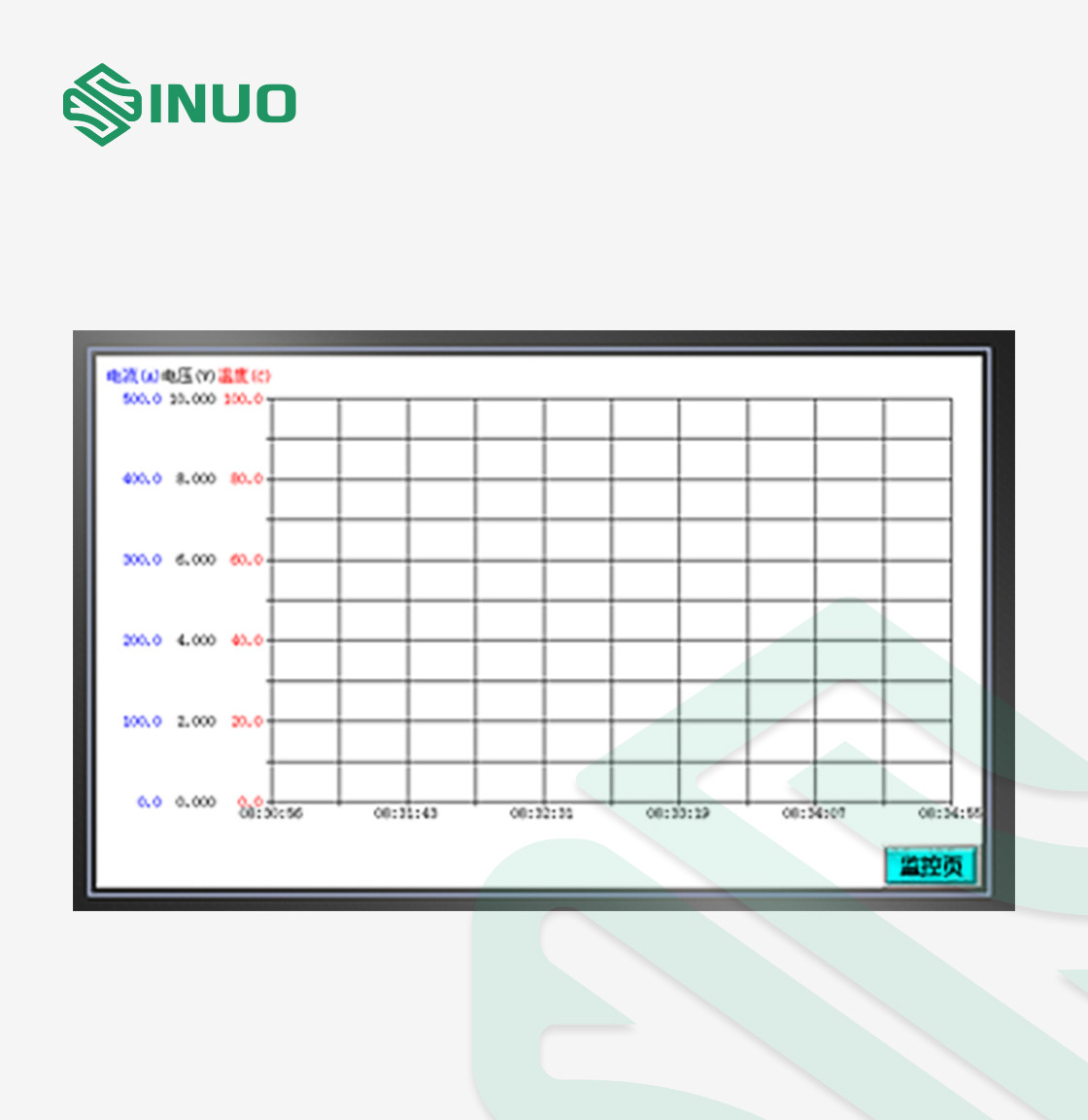

    Data outputThe current voltage temperature can display records with interfaces, and test data can be directly deflated with U disk cross.
    Safety Protection SystemExplosion-proof relief device, exhaustive device, fire extinguishing system, electronic door lock system, safe stop switch
    Purchase PieceTemperature capture, voltage collection system, video surveillance system

    Equipment Overview


    Q: What temperature can this device reach?
    A: The equipment can reach 0~80℃.
    Q: What is the Maximum short circuit current for this device?
    A: It is 1000A.
