    IEC 61851 High Voltage Impulse Test Generator for EV Charging Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1104-20KV
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    IEC 61851 High Voltage Impulse Test Generator for EV Charging Equipment


    IEC 61851 High Voltage Impulse Test Generator for EV Charging Equipment



    Complied Standards & Clauses



    The Impulse Test Generator conforms to the standard requirements of IEC 61851-1 clause 12.7, IEC 61851-23 clause 11.4, etc.


    Equipments Overview


    It is used to verify that the appliances shall withstand the transient over-voltages to which they may be subjected. The impulse voltage test is a destructive test in which a breakdown occurs if the test specimen cannot withstand the applied voltage. When the sample breaks down, sparks and discharge sounds will be generated. The peak voltage of the instrument will drop significantly (close to zero) when it is no-load. When the same voltage is applied again, the above phenomenon will occur.


    Technical Parameters



    ModelSN1104-20kV (Optional)
    DC high voltageMax. 20kV
    Impulse voltage wave

    Impulse wavefront time: 1.2 µs ± 30 %;

    Half value of after wave time: 50 µs ± 20 %

    Please note that the waveform should be checked on an external oscilloscope

    Instrument internal resistanceResistance matches ITU-T K.44
    Peak voltage: 300 V~ 12,500V

    Low: 300 V~ 2,500V;

    High: 2,500 V~ 20,000V

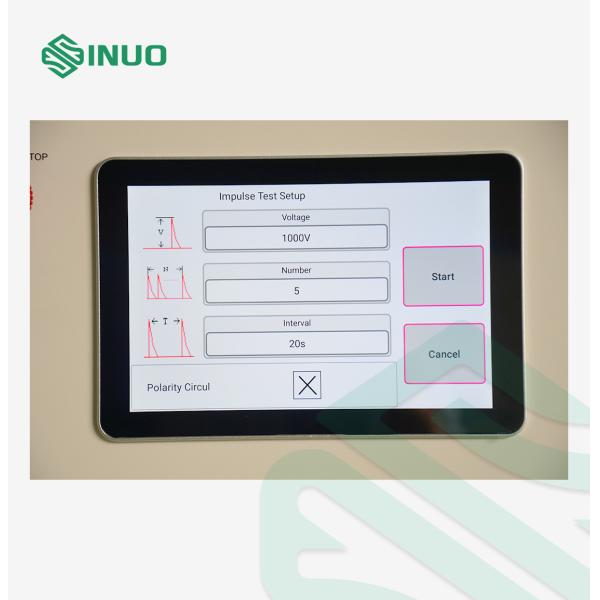

    Impact interval time10 ~ 99s
    Impact cycles1 ~ 9999
    Polaritypositive and negative
    Working power sourceRated voltage: ~ 220V±10%, 50Hz/60Hz
    Dimension650mm×550mm×1650mm
    Weight100 KG
    Detail


    IEC 61851 High Voltage Impulse Test Generator for EV Charging EquipmentIEC 61851 High Voltage Impulse Test Generator for EV Charging Equipment
