    Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN448-E4
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 1 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6


    Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6


    Complied Standards & Clauses



    Conforms to IEC 60529:2013, ISO20653:2006, IEC60068-2-18:2000, etc.


    Equipment Overview

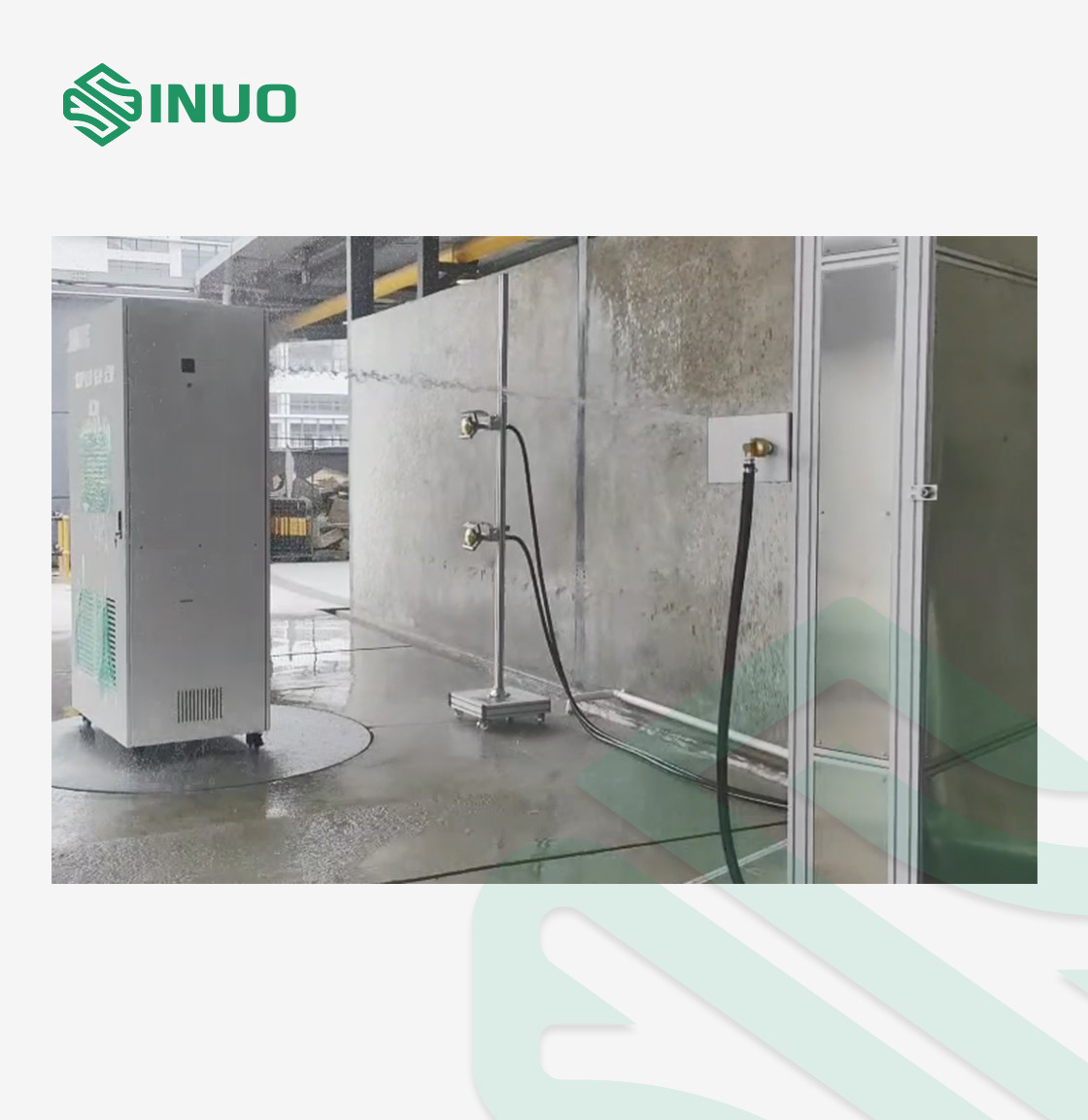

    The equipment consists mainly of a water collection pool, water storage tank, water replenishment system, drainage system, spraying system, electrical control system, and pump system.

    The equipment occupies a floor area of 6.5m (length) × 6.5m (width) × 3m (height), with a door opening size of 2000mm × 2800mm, featuring manual double doors made of tempered glass. Please have the user provide the site layout plan. (Refer to the construction site plan for details.)

    Application: used for conducting IPX5 waterproof testing on outdoor ESS systems, the automatic spraying system is applied to the front, rear, left, right, and top surfaces of the outdoor ESS system.


    Technical Parameters



    Water spray pressure30~150kPa
    Inner diameter of spray hole

    φ6.3 mm(IPX5),Ф12.5mm (IPX6)


    Movement speed

    The movement speed of the support frame is adjustable.

    Existing room size at user site6*8m(L*W)
    Customer sample specifications3*2.5*3m(L*W*H)
    Pre-set testing timeAdjustable from 1s to 9999h,59 min, and 59s.
    Tested surfaceThe five surfaces of the outdoor ESS system, excluding the bottom.
    Spray coverage requirements

    The automatic spraying system needs to cover the front, rear, left, right, and top surfaces.


    Spray method

    The entire test process involves fully automatic spraying, and the movement path of the spraying system does not interfere with the object being tested.


    The test process complies with the IPX5 protection level requirements as specified in IEC 60529:2013.

    Testing timeAdjustable from 1s to 9999h,59 min, and 59s.
    Side-moving spraying frame
    Main parameters of side movable spray rackThe frame is made of 40*40*3mm aluminum
    The sealing plate is made of 1.2mm stainless steel 304# plate
    IPX5 mobile device: servo motor gear connected to the rack for transmission
    Swing transmission spray device: adjustable eccentric wheel swing mechanism (swing angle is achieved by adjusting the eccentric distance)
    Spraying frame stroke: Equipped with a servo motor gear rack mechanism, the movable stroke is 3 m.
    Swing motorServo motor and reducer
    Mobile MotorServo motor and reducer
    GearStainless steel gear
    RackStainless steel rack

    Details

    Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6
