    Battery Explosion-proof Test Chamber 1092L EV Battery Testing Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN552-1092L
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

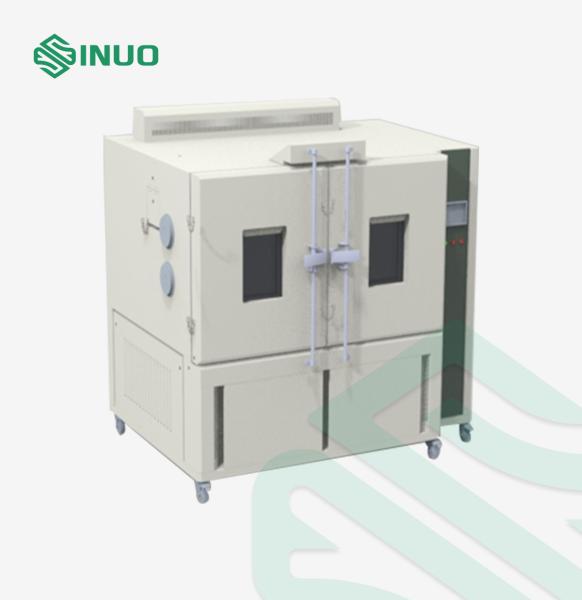

    Battery Explosion-proof Test Chamber 1092L EV Battery Testing Equipment


    Battery Explosion-proof Test Chamber 1092L EV Battery Testing Equipment


    Complied Standards & Clauses



    Conforms to IEC60068-2-2:2007, IEC60068-2-1:2007, etc.


    Equipment Overview



    Environmental conditions:

    1. Temperature: 5℃~35℃

    2. Relative humidity: ≤85%

    3. Air pressure: 86kPa~106kPa

    Limitation of specimen:

    This test equipment prohibits:

    1. Testing or storing samples of flammable, explosive, and volatile substances.

    2. Testing or storing samples of corrosive substances.

    3. Testing or storing biological samples.

    4. Testing or storing samples of strong electromagnetic radiation sources.


    Technical Parameters


    Technical Parameters
    Control & OperationPLC and touch screen intelligent control system

    Chamber Size


    Inner SizeExternal Size
    W1300*700H*D1200mmW1875*1980H*1723 mm
    Temperature Range-70 °C ~+150°C
    Temperature fluctuation±0.5℃
    Humidity fluctuation≤2.5%
    Temperature uniformity≤±2.0℃
    Temperature deviation≤±1.0℃
    Heating Rate-40℃→+72℃ No-load Linearity Within 30℃/min
    Cooling Rate+72℃→-40℃ No-load Linearity Within 30℃/min
    Load conditionNone
    Working noise

    A sound level≤70dB(A)

    (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)

    Explosion-proof pressure relief vent

    A set of explosion-proof pressure relief vents is set on the left side of the equipment, with a size of 300mm×300mm. When the internal pressure of the box is ≥0.104MPa, the pressure relief vent will open automatically


    Explosion-proof chain

    Explosion-proof window


    Control panelController 7-inch display screen, temperature (humidity) control display screen, operating indicator light, and lighting button.
    Mechanical roomRefrigeration unit, compressor water tray, pressure relief device, heating device
    Power distribution cabinetDistribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker
    Heater

    1. Fin-type radiator-shaped stainless steel electric heater

    2. Heating control method: SSR (Solid State Relay) non-contact equal period pulse width modulation

    3. Heating power: approximately 3KW

    Power cable holeLocated on the back of the chamber
    Details

    Battery Explosion-proof Test Chamber 1092L EV Battery Testing EquipmentBattery Explosion-proof Test Chamber 1092L EV Battery Testing Equipment
