    ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN8817
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber


    ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber


    Complied Standards & Clauses



    DIN 50017: atmospheres and their technical application-Condensation water test atmospheres


    IEC 61300-2-48 Fibre optic interconnecting devices and passive components-Basic test and measurement procedures-Part 2-48: Tests-Temperature-humidity cycling and etc.

    VW80000 clause 12.6 Electric and Electronic Components in Motor Vehicles up to 3.5t General Requirements, Test Conditions, and Tests


    ISO 6270-2 Paints and varnishes — Determination of resistance to humidity — Part 2: Procedure for exposing test specimens in condensation-water atmospheres


    Equipment Overview



    The sample is placed in the test box and subjected to several temperature-humidity cycles defined in the relevant specifications. During the entire test, the attenuation of the sample is monitored. This testing machine is mainly used for the influence of humidity and temperature changes that may occur during operation, storage or transportation of optical fiber interconnection devices, electronics, communications, and aerospace products.


    Technical Parameters


    SizeWorking area

    600*500*830mm(W*D*H)

    Can be customized

    External size

    Approx. 1200*750*1300mm(W*D*H)

    Or according to actual design

    PerformanceTemperature rangeAmbient~60℃ (common used temperature: 38℃/49℃/60℃)
    Temperature deviation±2℃
    Temperature accuracy0.1 ℃
    Heating rate≥10℃/30min (with load of 20KG steel,meet condensation test of VW80000-2013)
    Temperature fluctuation≤1℃ (≤±0.5℃, tested according to GB/T5170-2008)
    Heating methodElectric heating, PID adjustment, actuator: solid state relay
    Cooling rate≥65℃/75min (with load of 20KG steel,meet condensation test of VW80000-2013)
    Dehumidification systemUsing evaporator coil dew point temperature laminar flow contact dehumidification method
    Heating systemNew-type ceramic heating frame, with heating wire imported from Germany in the middle, thick wire diameter, high-temperature resistance, dry burning resistance
    Humidification systemFor external humidification, the humidification tube adopts a U-shaped design and over-temperature probe hole,
    Water supply systemThe humidification water supply adopts automatic control, and the residual water can be recycled, saving water and reducing consumption
    Cooling SystemFully enclosed Tecumseh compressor imported from France, using R404 and R23 DuPont environmentally friendly refrigerant
    Condensate outletWith outlet holes for studio condensate and unit condensate
    Humidity range100%RH (+0%, -5%, during condensation)
    Timing range1~9999 mins/hours
    MaterialsInner wall materialSUS304 Stainless steel plate
    Outer wall materialA3 iron plate sprayed
    Insulation materialRigid polyurethane foam
    Humidification tankHigh-quality 304 stainless steel water tank
    Sample rack2PCS, SUS304 stainless steel material, adjustable spacing storage track, sample rack can be adjusted up and down according to needs, evenly bearing 30KG/layer.
    LightThere is a lighting lamp on the top of the observation window, which is controlled by the switch outside the door, which is convenient and clear to observation
    Movable casters

    4 movable casters


    Observation windowThree-layer explosion-proof tempered glass window

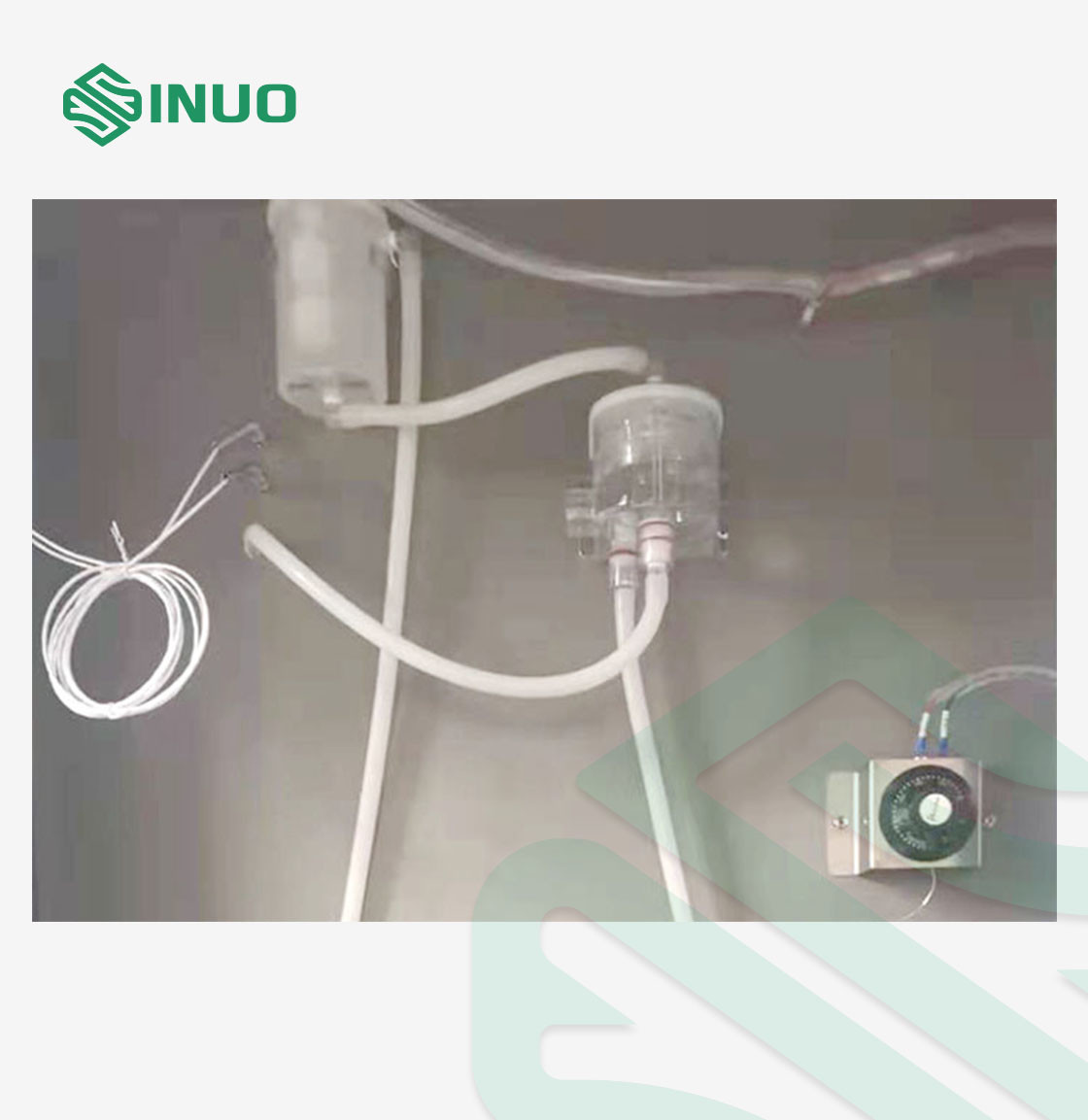

    Details

    ISO 6270-2 Motor Vehicle Components Condensation Environmental Test ChamberISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
