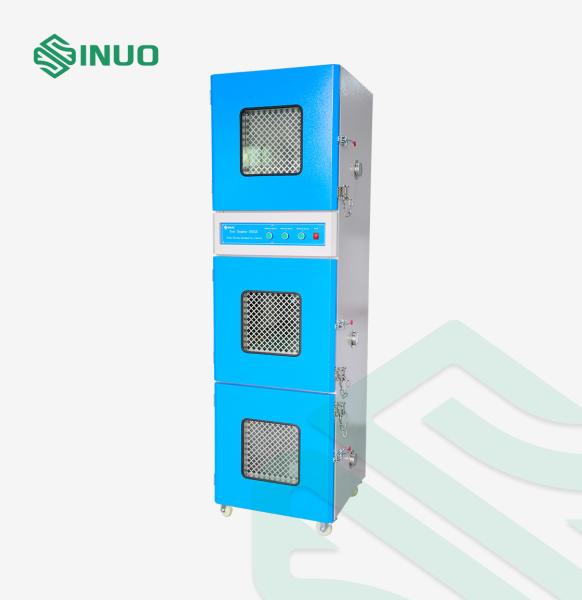

    Charge And Discharge Test Battery Explosion-proof Test Chamber

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN552C
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 1 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Charge And Discharge Test Battery Explosion-proof Test Chamber


    Charge and Discharge Test Battery Explosion-proof Test Chamber


    Equipment Overview



    The battery explosion-proof box is mainly used during battery overcharge and over-discharge &charge and discharge tests, for protection of the operator and the instrument.

    The battery is placed in the explosion-proof box, the charge and discharge test equipment is external and should be prepared by user, not included in this explosion proof chamber,.


    Technical Parameters



    Equipment size

    Test chamber size per layer: 500*500*500 (D*W*H),( Three zones structure, can be customized)

    Outer box size: 710*780*2060mm (W*D*H)

    Equipment Material

    Outer box: 1.5MM thick cold-rolled plate and high-temperature double-sided baking paint treatment.

    Inner box: SUS # 304 stainless steel, thickness 1.00MM thick.

    Box load-bearing capacityThe bottom load capacity is not less than 150KG, the second/third layer load capacity is not less than 50KG
    Equipment box door

    Single door, double door, inner box door is made of stainless steel, and add silicone strip to tighten, open visual observation window on the front.

    The door is connected to the box by strong hinges, while each door adds an explosion-proof hinge, the right end of the chain is fixed in the latch side to prevent the explosion-proof box and door separation, effectively protecting the safety of testers.

    Observation WindowDouble tempered glass, tempered glass thickness of 10MM, double tempered glass between the addition of steel wire grid in the explosion can do traction, while preventing the glass explosion when the glass splash injury testers situation. Observation window sealing using 3M glass adhesive for sealing.
    Box protectionThe test chamber is fully laminated with Teflon tape inside to effectively prevent corrosion, insulation, flame retardant and easy to clean.
    Wire loading portEach layer of the box on the left and right sides of each open a round loading line mouth, Ф50MM diameter, easy to test the connection line through.
    Details

    Charge And Discharge Test Battery Explosion-proof Test ChamberCharge And Discharge Test Battery Explosion-proof Test Chamber
