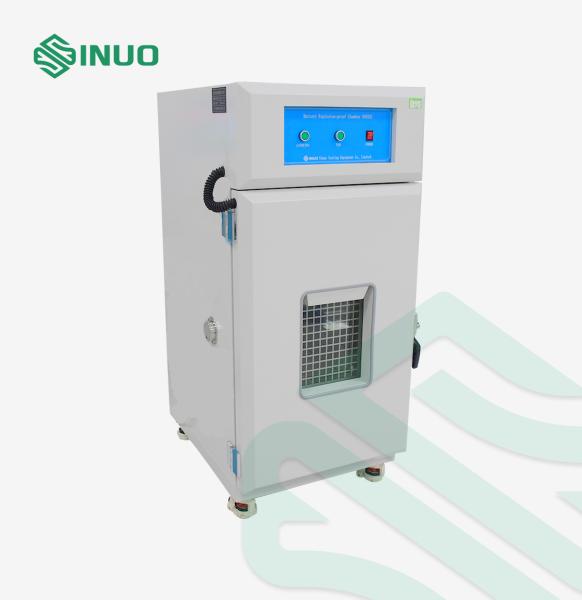

    UN38.3 Battery Explosion-proof Test Chamber With Temperature Control

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN552C
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 1 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    UN38.3 Battery Explosion-proof Test Chamber With Temperature Control


    UN38.3 Battery Explosion-proof Test Chamber With Temperature Control


    Complied Standards & Clauses



    Conforms to UL 1662:2012, UL 2056: 2012, UN38.3(2012), IEC62133-2012, IEC 62281: 2006, IEC 60086: 2007. etc.


    Equipment Overview



    Application: This battery explosion-proof box is used to prevent battery explosion or combustion from causing unnecessary harm to test personnel during overcharge, discharge, or other tests. The entire body is made of steel, with a strong texture and good explosion-proof effect.


    Technical Parameters



    Work chamber size

    W 900×H 800×D 1200mm, internal volume 864L

    Meets battery testing requirements

    Outer box sizeApproximately L1400*W1850*H2050mm
    Temperature range0℃~85℃ (full range controllable, adjustable control accuracy ±0.01℃)
    Temperature fluctuation≤±0.5℃
    Temperature deviation≤±1.5℃
    Temperature uniformity≤1.5℃
    Heating rate0℃~85℃, full range average 3℃/min non-linear (no load)
    Cooling rate85℃~0℃, full range average 1℃/min non-linear (no load)
    Strong base and frameThe base of the equipment is welded with channel steel. The frame is welded with channel steel on the base, and the whole equipment is fixed on the channel steel frame, which is strong and durable, with small vibration and low noise during operation.
    Noise index≤70dB (measured at 1m and 1.5m from the device in the forward direction)
    Box bottomEquipped with 4 universal wheels and 4 fixed feet, easy to move and stable
    Exhaust systemEach chamber can be controlled independently. The smoke generated by the test sample can be automatically detected and alarmed and the smoke can be discharged through the pipe. The discharge volume needs to be provided.
    Other functionsThe observation window is made of explosion-proof glass and explosion-proof film, with a size of 300 * 300mm.
    Equipped with fire extinguishing device, automatic and manual fire extinguishing (optional)
    Install lighting system
    Video surveillance

    The test area is equipped with a high-definition video surveillance system and can be remotely controlled;

    Color video;

    Pixels ≥ 5 million pixels;

    Video acquisition resolution: PAL: D1 (704x576) / CIF (352x288) /

    QCIF (176x144), and multimedia format (320x240);

    Horizontal clarity: 700TVL;

    Recording and playback speed: 25 frames/second per video channel (PAL);

    Video memory adds a mobile hard disk, and the video surveillance system is compatible with the mobile hard disk for storage to ensure data accuracy.

    (If the surveillance system needs to be set up in an explosion area, the surveillance system needs to have an explosion-proof function, and the camera can still monitor clear images after the explosion, which will not affect the next use) (optional)

    Structural requirementsThe equipment is integrally formed. The explosion-proof strength of the box meets the explosion strength of a module consisting of two 325Ah battery cells connected in series. Effective explosion-proof pressure relief design is carried out. The steel plate material is treated with rust-proof insulation and is effectively flame-retardant. Structural design drawings are provided. Explosion-proof chains are installed to prevent the box door from being opened.
    Details

    UN38.3 Battery Explosion-proof Test Chamber With Temperature ControlUN38.3 Battery Explosion-proof Test Chamber With Temperature Control
