    ISO4892-3 Chamber Type UV Aging Chamber Environmental Test Chamber

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN882B
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 20 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    ISO4892-3 Chamber Type UV Aging Chamber Environmental Test Chamber


    ISO4892-3 Chamber Type UV Aging Chamber Environmental Test Chamber


    Complied Standards & Clauses



    Conforms to ISO 11507, ISO4892-3, ASTM G154, ASTM G153, ASTM4329, IEC 61215, etc.


    Equipment Overview


    This product uses fluorescent ultraviolet lamps that can best simulate the UV spectrum of sunlight and combines temperature control, humidity supply, and other devices to simulate the damage of sunlight (UV band), high temperature, high humidity, condensation, dark cycle, and other factors that cause discoloration, brightness, strength decline, cracking, peeling, powdering, oxidation and other damage to materials. At the same time, through the synergistic effect between ultraviolet light and humidity, the single light resistance or single moisture resistance of the material is weakened or invalidated, so it is widely used to evaluate the weather resistance of materials.

    Technical Parameters



    ModelSN882B
    Sample sizeWDH=1100*600*500(mm) Inner size sample
    Sample placement area

    Chamber type

    WDH=1140*600*500(mm)

    Shape spaceAbout 1400*1750*750(mm)W×H ×D
    Center distance in the lamp70mm
    Distance between the test surface of the sample and the center of the lamp50±3 mm
    Nozzle quantityTop row 4 pcs
    Spraying pressure70~200Kpa adjustable

    UV-B

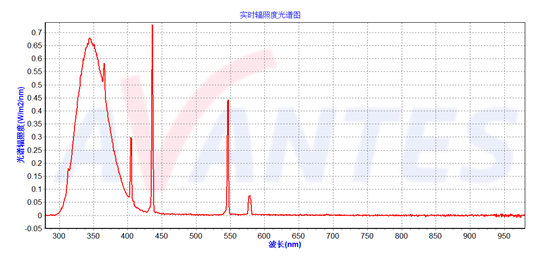

    Lamp irradiation distribution diagram



    1.Standard machine irradiation intensity 0~0.9 is W/m2.313nm, adjustable


    UV-A lamp irradiation distribution diagram

    1. Standard machine irradiation intensity is 0~0.9W/m2.340nm, adjustable


    Lamp length1220mm
    Lamp power40W
    Lamp lifespanMore than 1600h
    Number of lamps

    8 pcs lamps in the top row

    Ultraviolet lamps can be selected from UV-A / UV-B lamps. If there is no special instruction, the machine is equipped with UV-A lamps when leaving the factory

    Weight80 kg
    Maximum power3 KW
    Maximum current15A

    Power supply conditions and power supply

    AC 220V single-phase two-wire and protective grounding; voltage fluctuation range ±10%V; frequency fluctuation range 50/60Hz; TN-S or TT power supply; protective grounding resistance less than 4Ω; users are required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must independently control the use of this equipment
