EVSE Testing Equipment Outdoor IPX5 IPX6 Waterproof Spray Test System

Complied Standards & Clauses

Conforms to IEC 60529:2013, ISO20653:2006, IEC60068-2-18:2000, etc.

Equipment Overview

This product is specifically designed to test electrical equipment, ensuring that enclosures and seals can effectively maintain the performance of the equipment and components in rain-exposed environments. With a thoughtful and scientific design, it realistically simulates various environmental conditions, including drip, rainfall, splash, and water spray. Featuring an advanced control system and the use of variable frequency technology, the product allows for automatic adjustments of the rotation angle of the rainfall specimen rack, the swing angle of the spray arm, and the spray volume frequency, ensuring precise and reliable testing.

Technical Parameters

IPX5 parameters
Number of spray nozzles	3 pcs IPX5 nozzles, 3 pcs IPX6 nozzles
Inner diameter of spray hole	φ6.3 mm(IPX5) φ12.5 mm(IPX6)
IPX5/6 spray nozzle
Water spray flow	12.5±0.625(L/min)(IPX5), 100±5 L/min100±5 L/min(IPX6)
Spray distance	The sample is positioned 2.5 to 3 meters away from the nozzle, with the distance being carefully controlled by the tester.
Pipe diameter	One piece of 1/2-inch soft pressure pipe and one piece of 1-inch soft pressure pipe.
Nozzle connection hose	The product features an imported transparent hose reinforced with stainless steel wire for enhanced durability and flexibility.
IPX5/6 nozzle bracket	The nozzle height and angle can be manually adjusted for precise control and flexibility during testing.
Water spray test time	The duration is adjustable, with a minimum of 3 minutes or longer, depending on the testing requirements.
Water spray pressure	The pressure range is adjustable from 30 to 100 kPa, depending on the required flow rate.

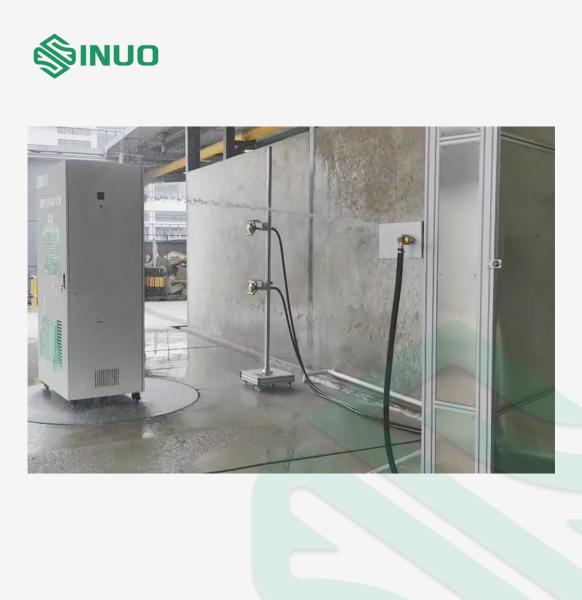

Automatic spray system	The spray rack is constructed from formed aluminum profiles and is equipped with a set of IPX5/6 up-and-down swinging nozzles, each of which is independently controlled for precise testing. The movable IPX5/6 spray nozzle system consists of 6 spray nozzles in total. One IPX5 nozzle is positioned at the top to test the upper part of the energy storage cabinet, while the remaining 5 IPX5/6 nozzles are located in the middle of the system. Each of these nozzles is capable of vertical (up-and-down) swinging with a swing angle of ±15°. Each of the 6 nozzles is equipped with a mechanical flow meter, allowing for individual control of the flow rate for each nozzle. (The picture for reference only)
Turntable system
Turntable diameter	4000 mm
Turntable load	1T
Turntable speed	1～5 R/min (adjustable)
Water tank parameters
Water tank size	1000×3000×1000mm(W*D*H)
Water tank material	SUS304 stainless steel
Water level	Transparent hose, with stainless steel ruler to observe water level, ruler height 1.5m, ruler accuracy: 1mm
Water tank level control	Stainless steel float, overflow hole
Mobility	Four pcs swivel casters for easy movement, with brakes.
Water tank cover	1 pcs
