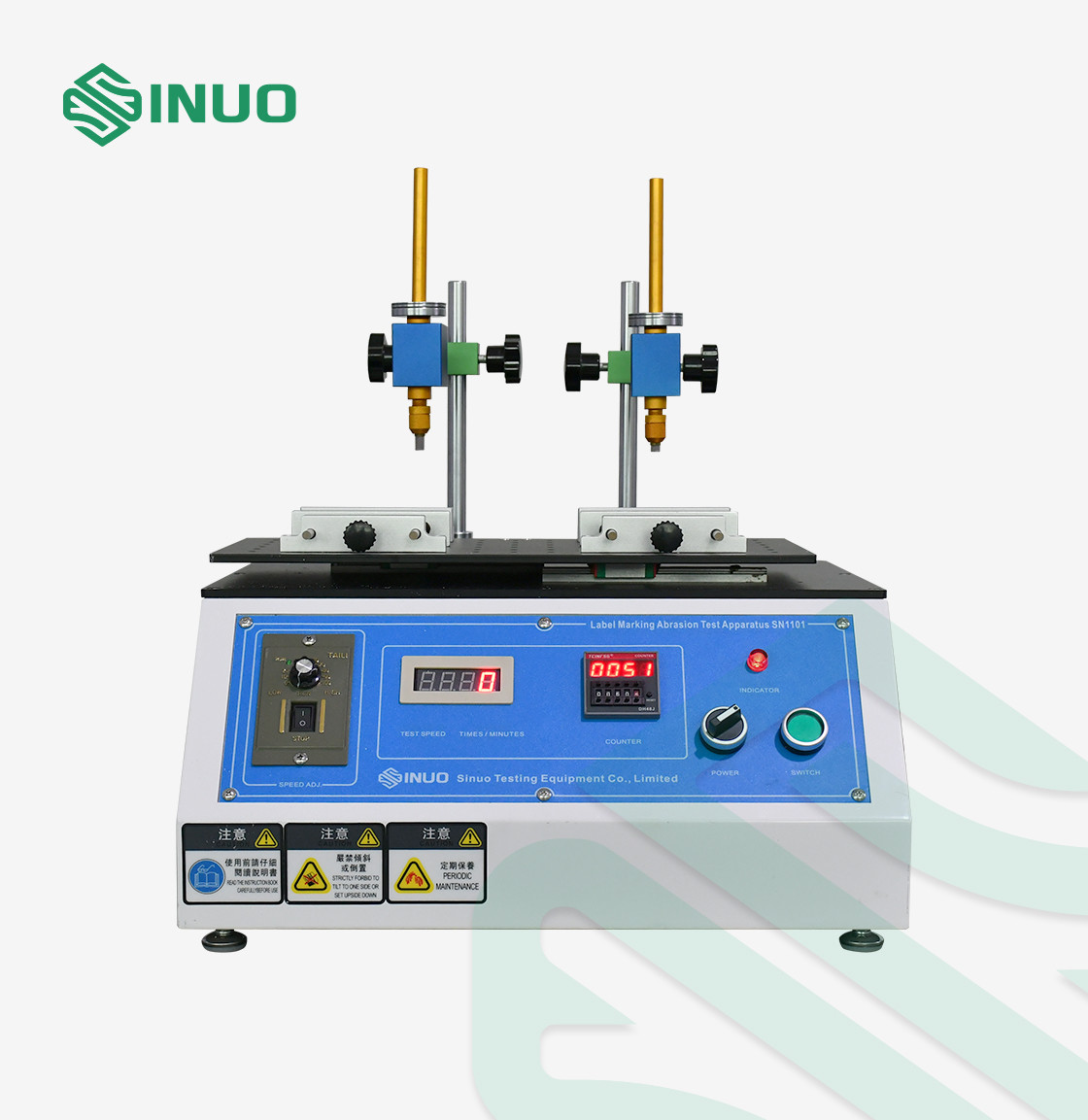

IEC 62196 Dual station Label Marking Abrasion Test Apparatus

Complied Standards & Clauses

This label marking abrasion test apparatus conforms to IEC 62196-1:2022 clause 8.7, figure 8.

Product Overview

It is utilized to assess the endurance of the marking. The examination is conducted by wiping the marking for 15 seconds with a cotton cloth moistened with water, followed by another 15 seconds with a cotton cloth soaked in 95% n-hexane (Chemical Abstracts Service Registry Number, CAS RN, 110-54-3). After testing with water, the marked surface shall be dried. Rubbing should begin immediately after soaking the cotton piece, applying a pressure force of (5 ± 1) N at an approximate rate of one cycle per second (one cycle consisting of a forward and backward stroke along the marking’s length). For markings exceeding 20 mm in length, rubbing may be restricted to a section of the marking over a path of at least 20 mm. The pressure force is exerted using a test piston wrapped with cotton, which consists of cotton wool enclosed by a layer of medical cotton gauze. The test piston must conform to the dimensions in Figure 8 and should be composed of an elastic material resistant to the test liquids, possessing a Shore-A hardness of 47 ± 5 (such as synthetic rubber).

Technical Parameters

Sinuo Testing Equipment Co., Limited established in 2019, but Sinuo has rich experience in manufacturing test euipment, test system and offering overall laboratory construction of electronic and electrical products. Sinuo's main products include electrical vehicle test equipment, battery testing equipment,  electromagnetic compatibility (EMC) test system, environmental testing equipment, fire retardant test equipment, dust-proof waterproof testing equipment and electrical appliances testing equipment. Our products covering electrical vehicle, electric power, communication, electrical appliances and electronic devices industries.

Sinuo has a professional technical research and development team, which is proficient in various international standards such AS IEC, ISO, EN, VDE, BS, AS, ASTM, GB and industry standards such AS MBN LV124, VW-80000. We master physical mechanics, heat, electricity, fluid and other theoretical knowledge in the application of equipment. And continue to focus on industry standard equipment performance optimization, operation simplification and equipment stability and reliability improvement.

Sinuo has two factories in Guangzhou and Dongguan, and cooperates with many research institutions and schools. Our R&D and production capacity are in the forefront. We have authorized agents in South Korea, the United States, South Africa, Egypt, Pakistan, the Philippines and other places, we serve customers BV, CSA, Intertek, SGS, TUV and other internationally renowned testing and certification institutions, local government quality inspection departments and production factories.
