Brand Name : | Sinuo |
Model Number : | SN882C |
Certification : | Calibration Certificate (Cost Additional) |
Price : | Customized |
Payment Terms : | T/T |
Supply Ability : | 20 sets/month |
Delivery Time : | 30 days |

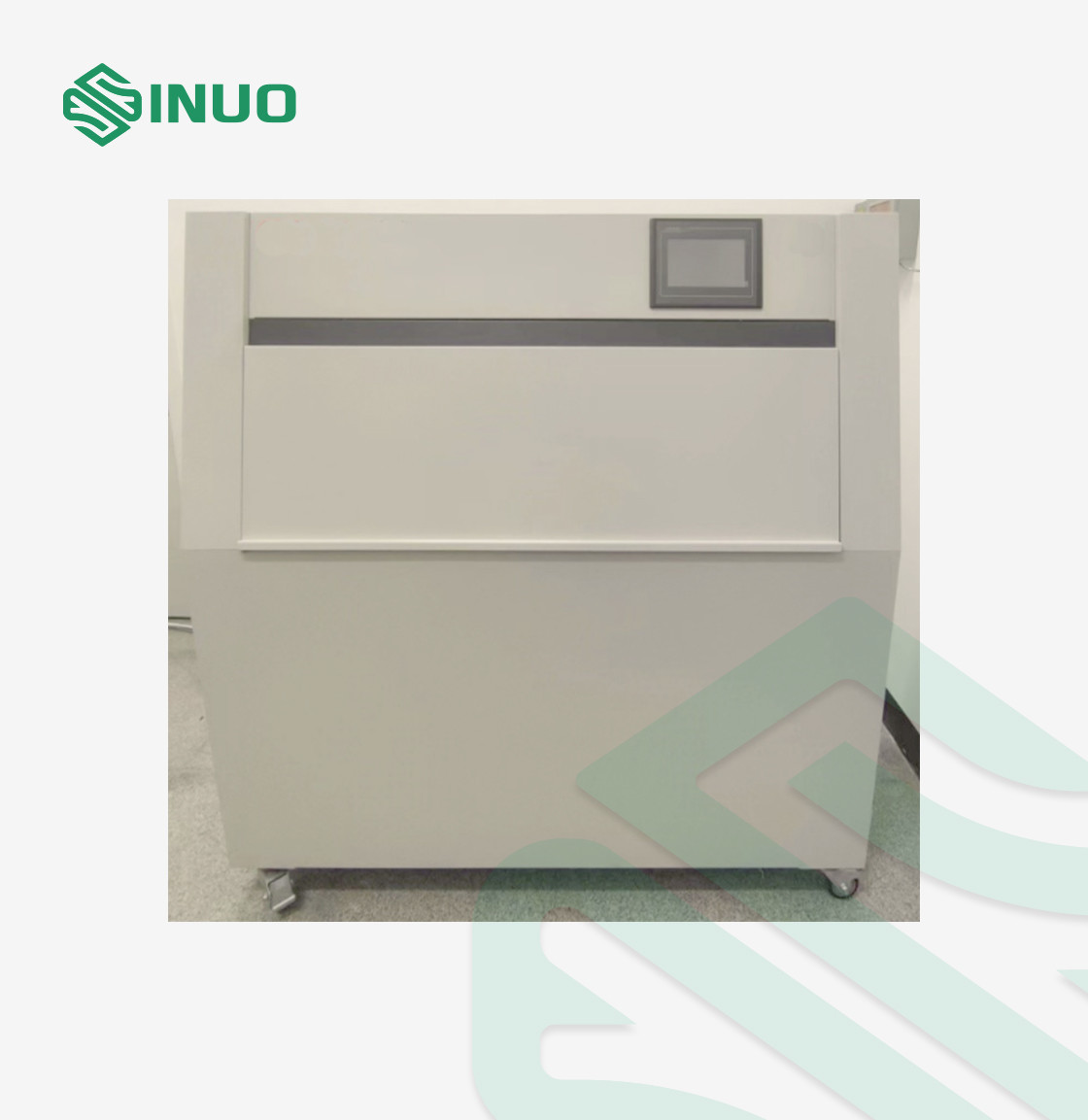

Accelerated Weathering Environmental Tester UVC Aging Test Chamber
Complied Standards & Clauses
The main applicable standards for UV-C are GB4706.1 GB/T 17554.1 IEC 60335-1.the main applicable standards for UV-C are GB4706.1 GB/T 17554.1 IEC 60335-1, etc.
Equipment Overview
Technical Parameters
Configuration | 1 UV aging test chamber, 8 UVC lamps (Not equipped with: pure water machine) |
UV-C ultraviolet light | wavelength 200 ~ 275nm |
Service life | 2000 hours |
Irradiance range | UVC254nm: 5W/㎡~10W/㎡ |
Light source | UVC 254 |
Condensation | Yes |
Rain | Yes |
Dimensions | 147*56*135cm(W*D*H) |
Sample rain | Yes |
Total exposure area | 5175c㎡ |
Power supply | AC220V, 10A, well grounded |
Weight | 170KG |
Water source | National laboratory level 3 water, water pressure: 0.15Mpa~0.3Mpa |
Sample racks | 24 (300 mm*75 mm) can hold 48 standard samples. |
Blackboard temperature range | 40℃~80℃ |
