    Withdrawal Force and Latching Verification Test Apparatus IEC 62196-1

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1013
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 30 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Withdrawal Force and Latching Verification Test Apparatus IEC 62196-1


    Withdrawal Force and Latching Verification Test Apparatus IEC 62196-1



    Complied Standards & Clauses



    This test equipment conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14.

    Equipment Overview



    It is used to check the withdrawal force required when the test plug is withdrawn from the socket-outlet and latching device.


    Technical Parameters



    A Withdrawal force

    The switched EV socket-outlet or switched vehicle connector with interlock is fixed to the support of the apparatus shown in Figure 13 of IEC62196-1:2022 that the axis of separation is vertical, and the movement of mating accessory is downwards.

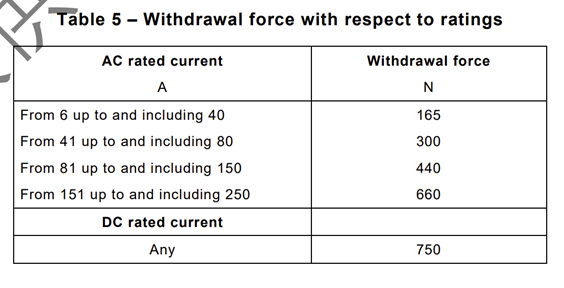

    The withdrawal force of the socket-outlet shall meet the requirements of following Table. The weights are included.


    B.1 Apparatus for checking the withdrawal force:

    This device is mainly composed of the installation fixture, the clamping device, principal weight, supplementary weight and the test plug. Based on experience, the pull clamp is changed to a counterweight, the weight hook is directly connected to the test plug, and the fixture for holding the sample is configured. The specific shape is shown in figure 1.



    Figure1


    B.2 Verification of the latching device:



    Details:

    Withdrawal Force and Latching Verification Test Apparatus IEC 62196-1Withdrawal Force and Latching Verification Test Apparatus IEC 62196-1
