    IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN442
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics


    IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics


    Complied Standards & Clauses



    It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2, IEC60335-1 clause 15.etc.


    Product Overview

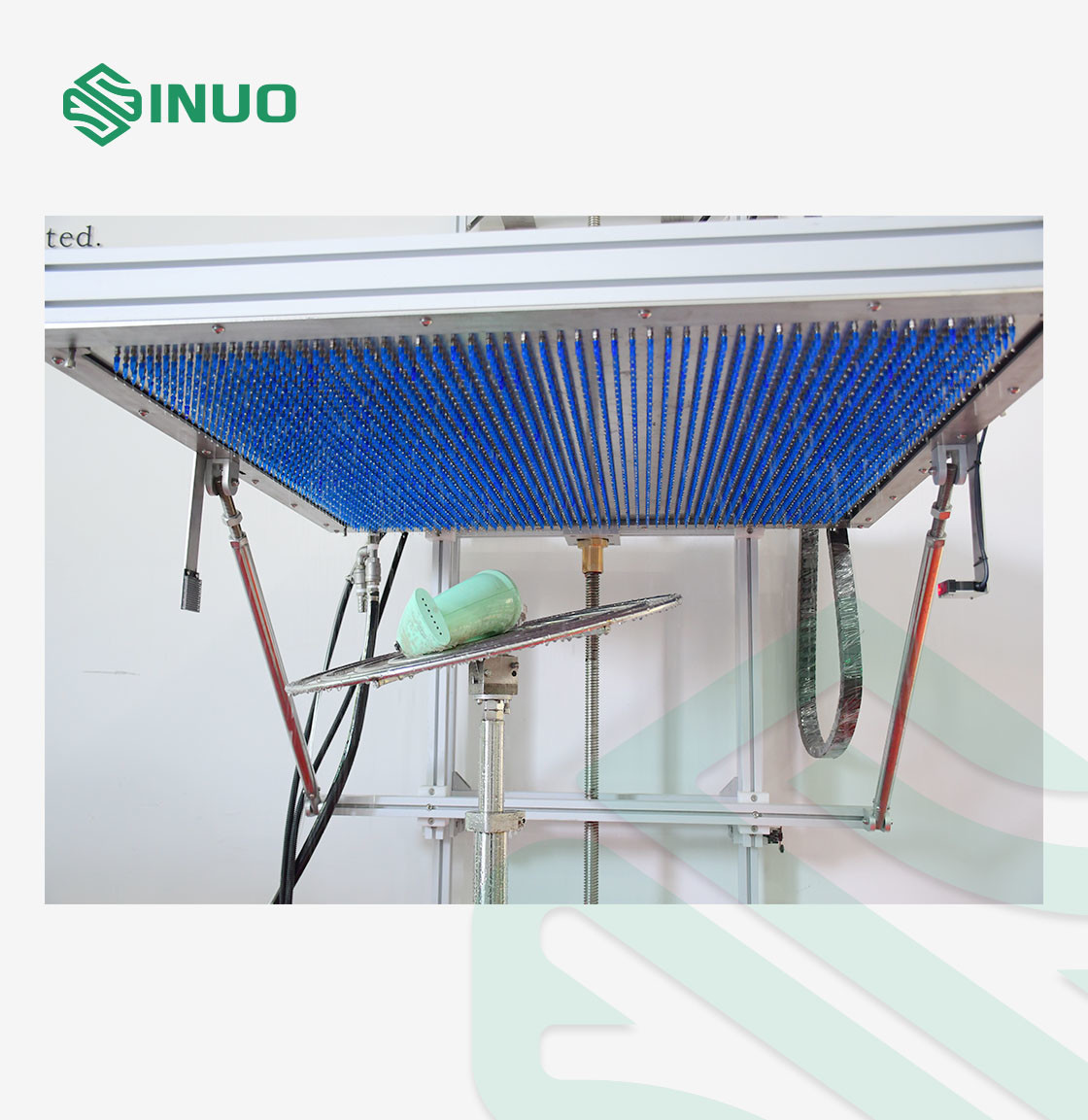

    This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2, IEC60335-1 clause 15.etc.

    The rise and fall of the drip box is controlled by the motor. The electrical control cabinet is with PLC and touch screen.

    1. Stainless steel fine filter for dirt filtration.

    2. Adopts compressed air (compressed air should be prepared by user) to blow out the water in the needles, to prevent water reactive substances and atmospheric blocking needles.

    3. Stainless steel general medical needle nozzles, easy to buy, not easy to rust.

    4. Needle nozzles and needle nozzle seats using taper connection, can be easily replaced without the tool, individual damage to the needle nozzle can be easily replaced quickly.


    Technical Parameters


    ItemSpecifications
    Power supply of this equipmentThree phase AC380V, 50Hz, 4KW
    Power supply for test sampleSingle phase AC220V, 16A
    LWGYD-4 flow rate SensorsFlow range: 0.667-4.167 L/min, pulse output
    Small water pumpBrand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
    Waterproof test rangeIPX1 test, IPX2 test, IPX1/IPX2 custom
    IPX1-IPX2Drip area: 1000*1000mm
    Diameter of drip hole: 0.4mm
    Distance between each two neighbor holes:20mm
    Test flow:1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)
    Test timeSet according to the test standard (range 1-9999 seconds), the unit is: second
    Water dripping height200mm (automatically controlled by the test equipment)
    Water DrainageAutomatically emptying the tank water after the test is completed, should connected with an air source (the 0.6MPa compressed air source should be prepared by user)
    Equipment body materialIndustrial aluminum alloy
    Installation methodWall Mount
    Turntable1-5r/ min, can be set
    ControlPLC & 7” touch screen

    Details



    IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for ElectronicsIPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
