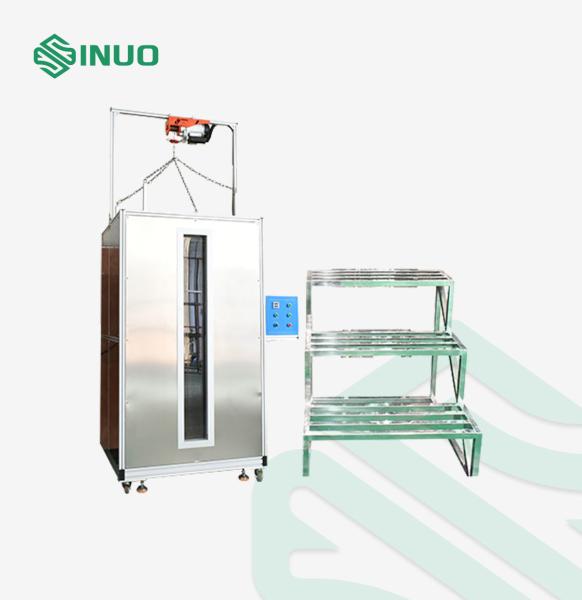

    IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN4410
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 30 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber


    IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber


    Complied Standards & Clauses



    IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.


    Equipment Overview



    It is used for the testing of IPX7. Mainly used to test the product waterproof performance in the soaking environment. Through the test, check whether the product waterproof level meet the requirements, for product design, R&D and factory inspection use.


    Technical Parameters



    Chamber external sizeApproximately W 1080* D 1080*H 2300mm (including casters)
    Chamber inner sizeLength 1000* W 1000* H1800mm
    Max. test water depth1.8m
    Observation windowTempered glass (thickness: 12mm)
    Observation window width200mm
    Water level adjustment methodWater inlet / drain valve, manual adjustment
    Water level displayScale (accuracy 1mm)
    External chamber materialStainless steel plates + Aluminum profile frame
    Inner chamber material2.0mm thickness stainless steel

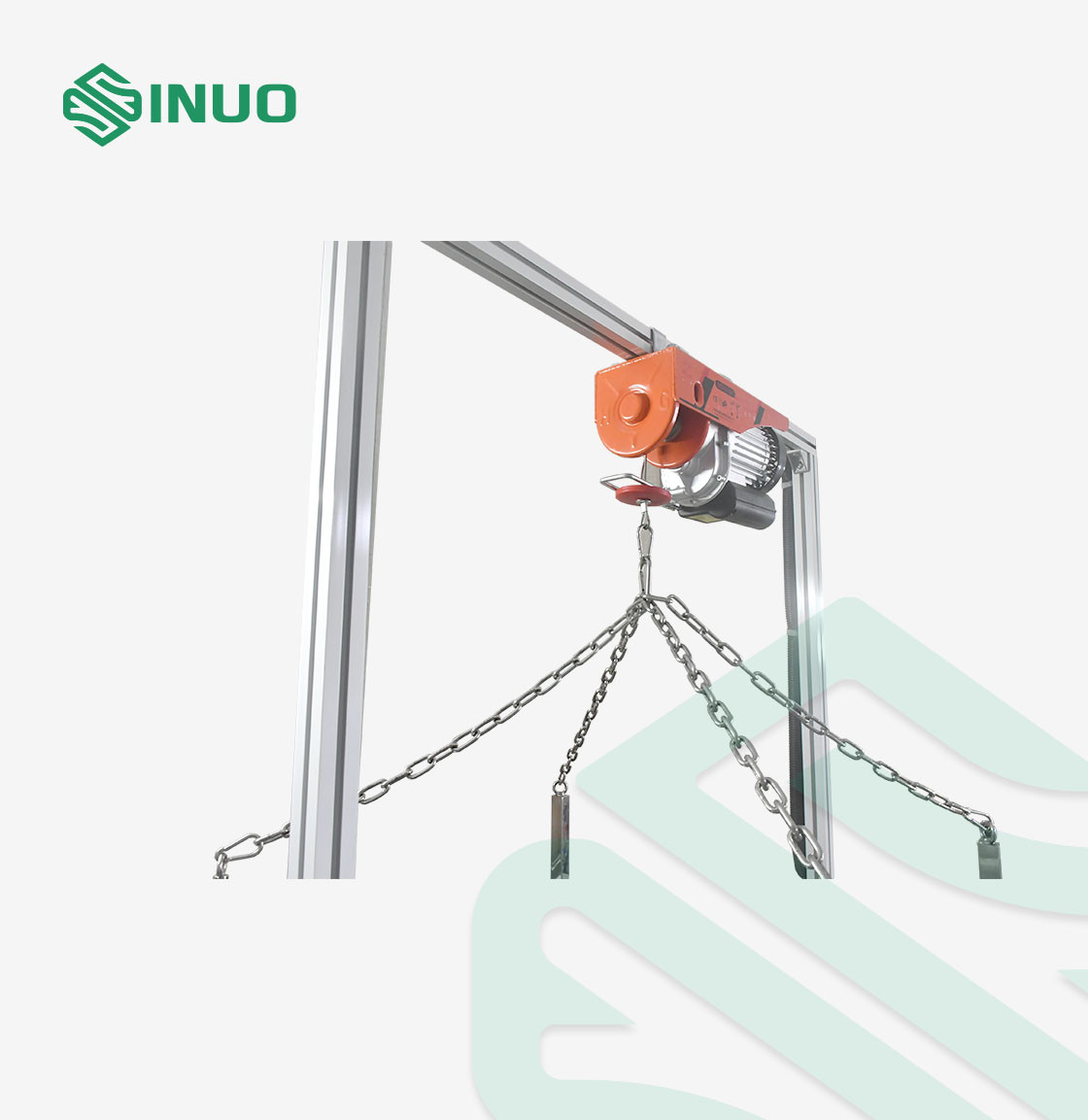

    Electric lifting basketMade of stainless steel, controlled by electric hoist
    Control methodButtons (non-PLC)
    Test time0.01 second-99.99hours can be preset
    Immersion depth requirements

    The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water

    The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water

    Test contentIPX7
    Power supplyAC 220V,50Hz, 1KW

    Details


    IPX7 Ingress Protection Test System IEC 60529 IPX7 Test ChamberIPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
