10kV EVSE Testing Equipment Circuit 3 Impulse Test Generator

Complied Standards & Clauses

This surge test generator conforms to IEC 62368-1:2018 clause 5.4.2, 5.5.8 and Annex D, circuit 3 of Table D.1, Annex G.10, etc., IEC 60950-1:2013 clause 7.4.2, reference 3 of table N.1, IEC60065:2014 clause 10.2, 13.3.4 a).

Equipments Overview

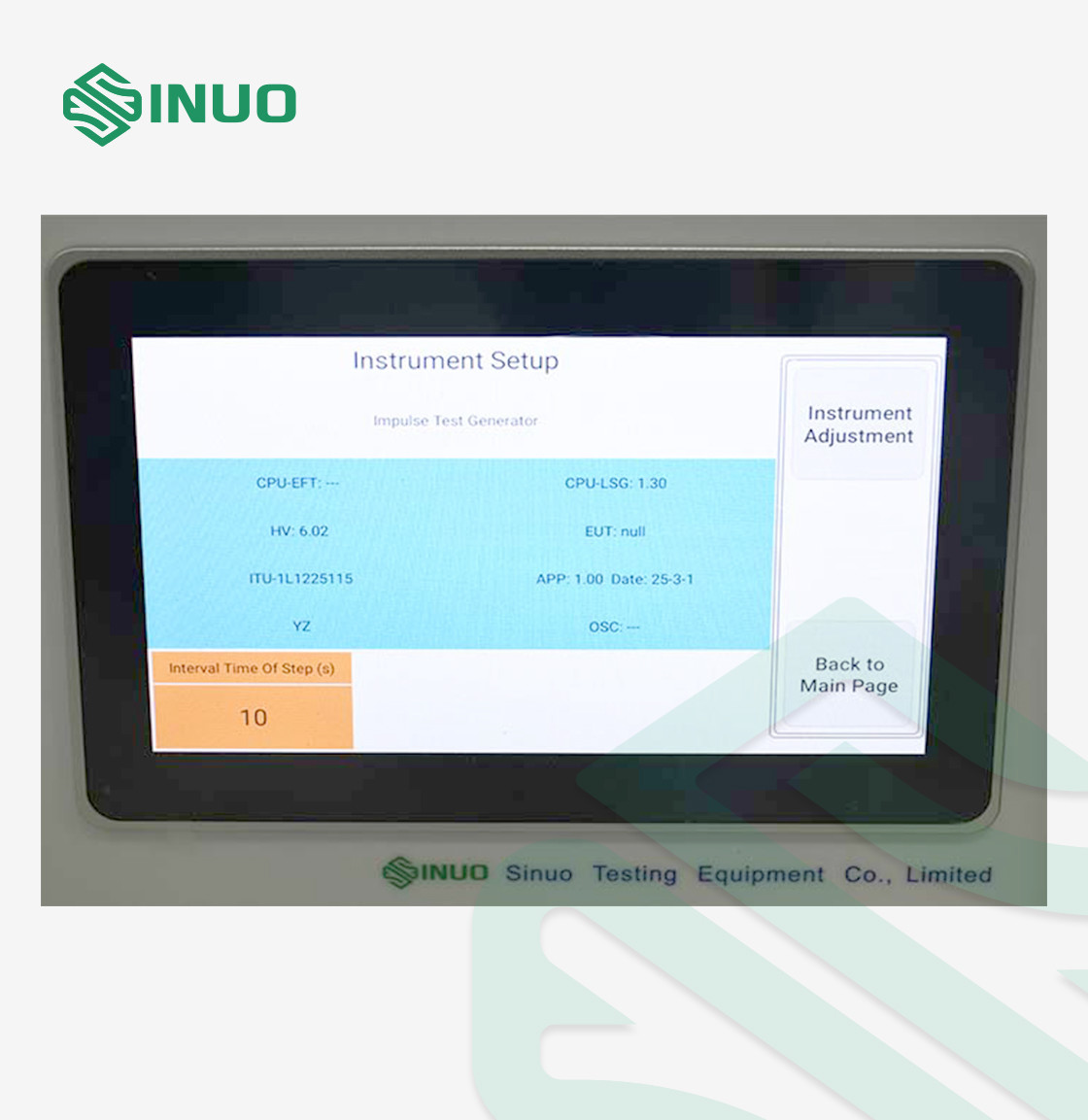

7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software

Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection

Output intelligent detection, voltage error, no output warning

Technical Parameters

Output voltage	10kV (Max) ±5％
Output polarity	Positive, negative, positive and negative cycle
Input impedance	1KΩ,±10％
Storage capacitor	1000PF
Charging resistance	15MΩ
Impact mode	Automatic or manual
Impact cycles	1-9999
Impact interval time	3-999s(3s of which is the inherent charging time of the device)
Use Environment	Temperature: 15℃-35℃, relative humidity: 10% -75%
Power source	AC220±10％, 50/60Hz
Dimension	470mm×260mm×500mm
Weight	30kg
