    Automotive Waterproof Testing Hot Water Spray Test Chamber IPX9

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN4412-1000L
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 1 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Automotive Waterproof Testing Hot Water Spray Test Chamber IPX9


    IPX9 High Pressure High Temperature Water Jetting Test Chamber


    Complied Standards & Clauses



    Conforms to IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, DIN40050-9, ISO20653 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects), protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water).


    Equipment Overview


    Application:It is used to inspect the enclosures of the electrical equipment (IP supplementary code test), and it is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.

    Test sample:Products should pass IPX9 degrees waterproof test, such as automotive and motorcycle parts, electrical and electronic industries.


    Technical Parameters



    Power supplyThree phase AC380V, 50Hz, 15KW
    The chamber doorlarge screen visual tempered glass door, observing test condition and time and equipped with a wiper.
    Inner chamber sizeL 1000MM * W 1000MM*H 1000MM
    Outside chamber sizeApprox. L 1500MM * W1200MM * H 1950MM
    Control systemIndependent research and development touch screen control system.
    Jet pressure gaugecan display water pressure.
    Pipe diameter3/4”
    Hot water jet temperatureRT~80°C±5°C. (Adjustable, enhanced temperature and water overflow protection)

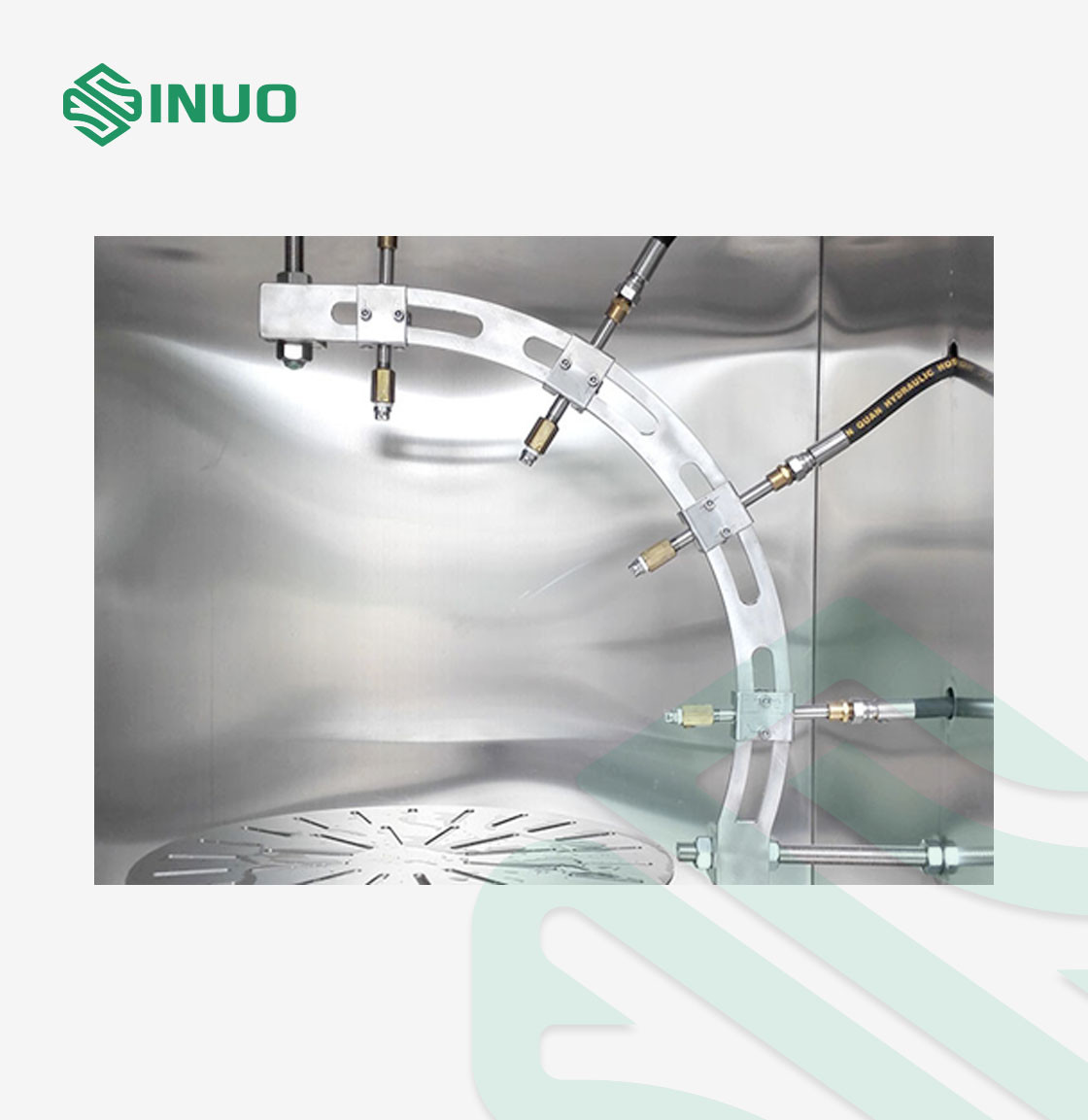

    Water jet angle0 °, 30 °, 60 °, 90 ° (The testing angle can be adjustable by manual), based on a horizontal line, distribute nozzle hole at anticlockwise ±0° ±30° ±60° ±90° with valve on nozzle, can set programmable to jet in turn.
    Water jet surfaceFront of the product.
    Jet water pressure80 ~ 100bar (8000 ~ 10000Kpa, 81.5-101.9kg/c㎡)
    Jet systemComposed by the high pressure high temperature water pump, high pressure high temperature water pressure meter, high pressure high temperature solenoid valve, high pressure high temperature hydraulic pipe.

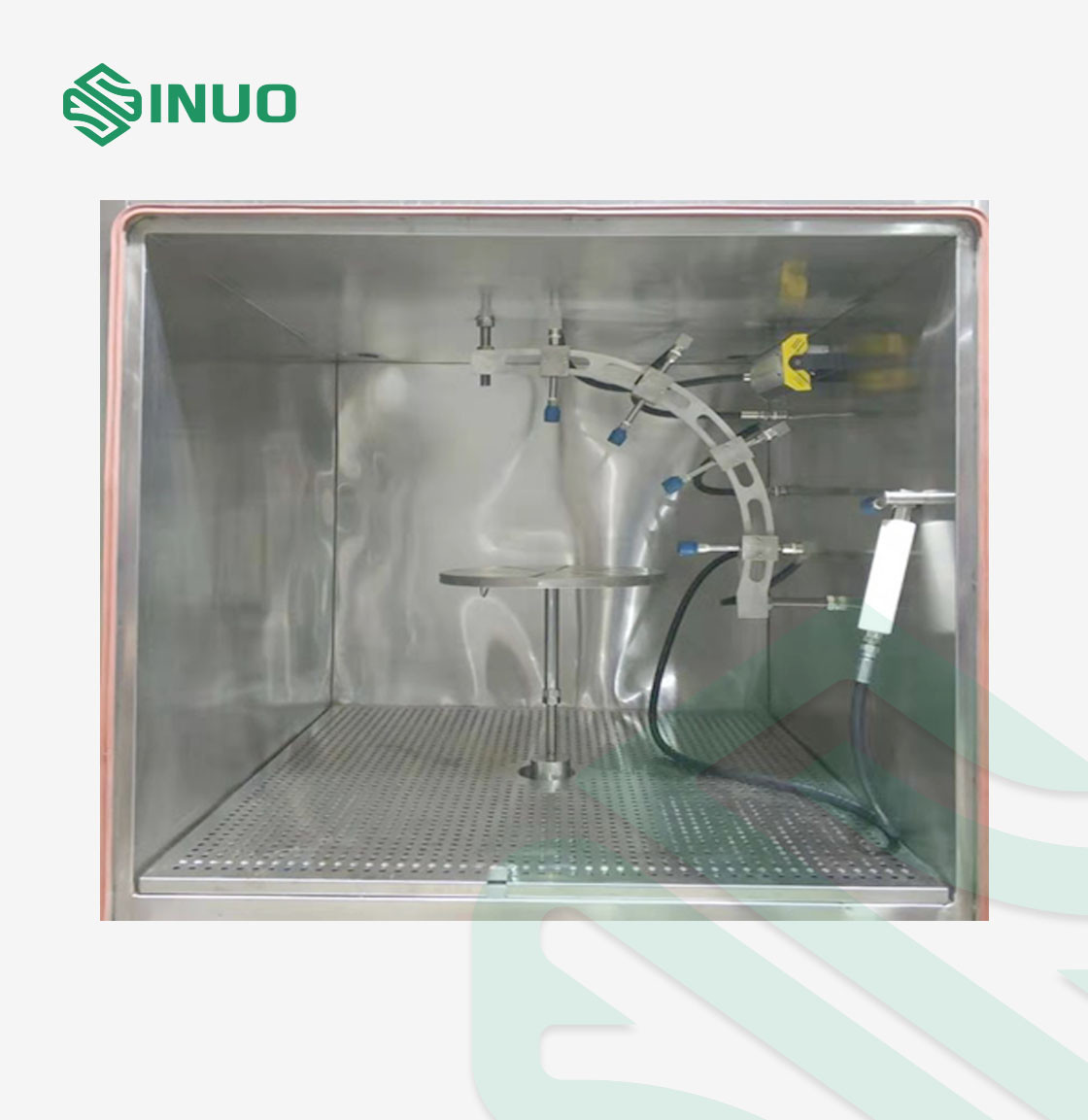

    TurntableThe product needs to be placed on a turntable, bearing capacity: ≤30Kgs.
    Jet nozzle4 pcs
    Details

    Automotive Waterproof Testing Hot Water Spray Test Chamber IPX9Automotive Waterproof Testing Hot Water Spray Test Chamber IPX9
