    UL2594-2016 12KW AC380V Constant Temperature Water Bath Chamber

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2217A
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    UL2594-2016 12KW AC380V Constant Temperature Water Bath Chamber


    UL2594-2016 12KW AC380V Constant Temperature Water Bath Chamber


    Complied Standards & Clauses



    Conforms to UL2594-2016.


    Product Overview



    Samples and restrictions: Elevator cable center core.

    Application: The constant temperature water bath chamber is equipment designed for testing the electrical performance of PVC plastic cables. An instrument suitable for testing AC withstands voltage, insulation resistance, water immersion capacitance increase rate, etc. on wires and cables.

    It can be used in situations where the insulation resistance coefficient of 70°C or 90°C is specified in IEC502-83 "Measurement of Extruded Solid Dielectric Insulated Power Cables with Rated Voltage 1-30KV" or "National Standard for Plastic Cables".

    This machine adopts a stainless steel inner tank, has a large container volume, is easy to operate and has good temperature stability. It is a plastic cable insulation testing equipment.


    Technical Parameters



    Constant temperature range

    If the room temperature is lower than 10℃, 10-100℃

    If the room temperature is higher than 10℃, the room temperature is -100℃

    Temperature fluctuation range±1℃
    Input voltageAC380V,12KW
    Heating control methodNon-contact solid-state relay
    Temperature measuring thermocoupleAdopt waterproof high-precision PT100
    Cycle modeBuilt-in high-temperature pump circulation method
    Effective volumeDWH=900×1100×600mm. Inner box materials stainless steel 304

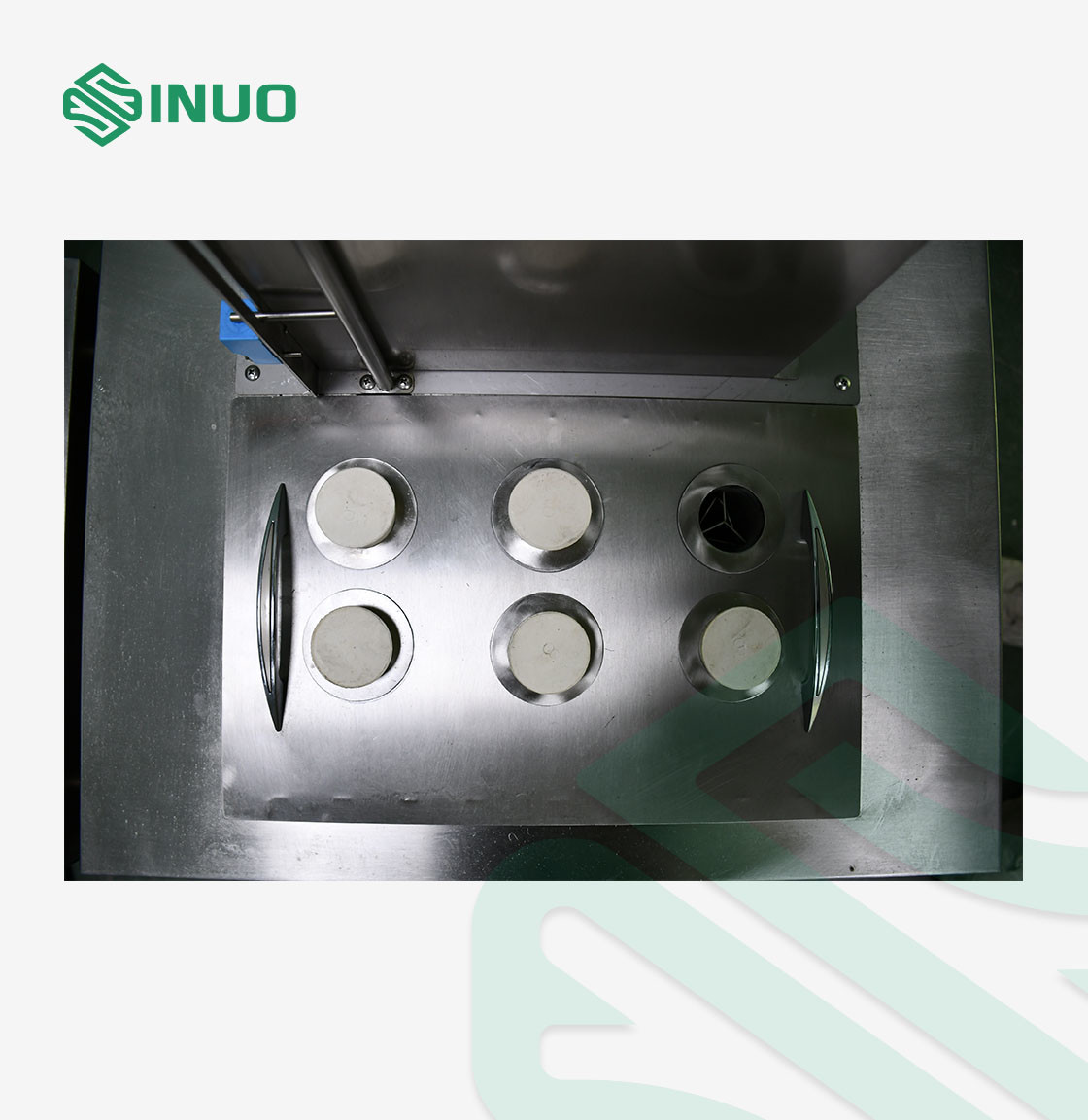

    Test holeThere are two test holes each with a diameter of 60mm and 100mm.

    Details



    UL2594-2016 12KW AC380V Constant Temperature Water Bath ChamberUL2594-2016 12KW AC380V Constant Temperature Water Bath Chamber
