    Multi-position Mobile Manual Release Socket Mechanical Strength Test Device

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2129A
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Multi-position Mobile Manual Release Socket Mechanical Strength Test Device


    Multi-position Mobile Manual Release Socket Mechanical Strength Test Device


    Complied Standards & Clauses



    Conforms to IEC62196-1:2022.


    Product Overview



    Samples and restrictions: Charging gun cable assembly.

    Application: Check the mechanical strength of the charging gun cable assembly.

    Test principle: Use a clamp to fix the sample at a height of 1000mm from the ground and drop it to verify its mechanical strength.

    Usage environment: Power supply: -, working temperature 0-40℃, humidity 30%-90%;


    Technical Parameters



    Equipment dimensionsApprox.: 2400×850×400 (mm) W×D×H
    Equipment weight50kg
    Drop height1000mm
    Distance from fixed end2250mm
    Drops frequency8 times

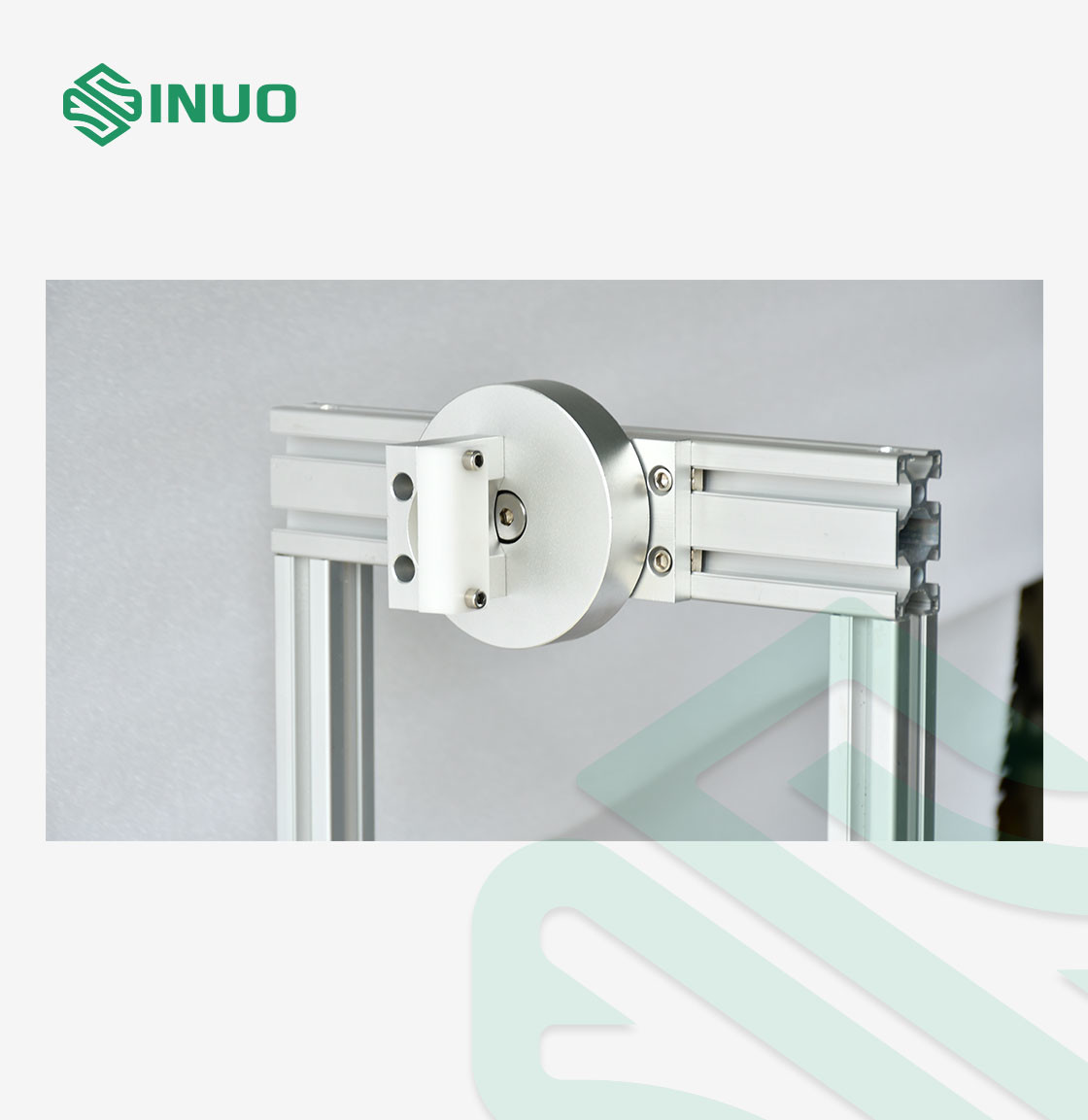

    Rotating device45° indexing, 8 directions rotatable
    Drop methodManual release

    Details



    Multi-position Mobile Manual Release Socket Mechanical Strength Test DeviceMulti-position Mobile Manual Release Socket Mechanical Strength Test Device
