    ISO EV Battery Pack Vibration Testing System Equipment 2800 Hz

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN553- EV211HG50VT50VCS-2
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

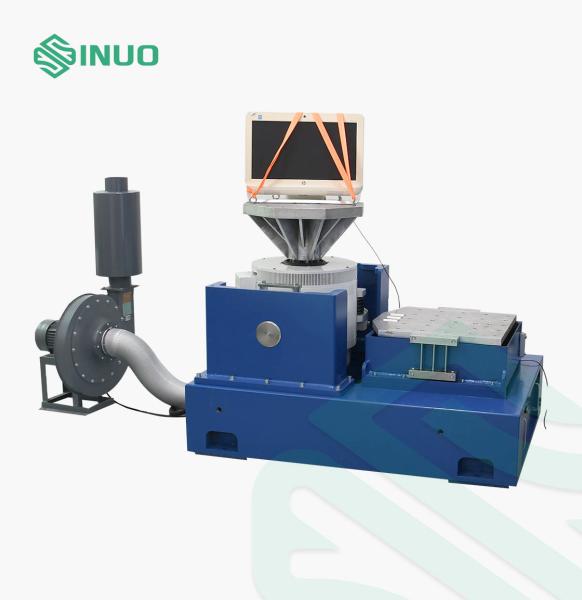

    ISO EV Battery Pack Vibration Testing System Equipment 2800 Hz


    ISO EV Battery Pack Vibration Testing System Equipment 2800 Hz


    Complied Standards & Clauses



    Conforms to UN 38.3, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM.


    Product Overview



    Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

    Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards


    Technical Parameters



    SA-6K digital switching power amplifier
    Output power12KVA
    Output voltage120V
    Output current100A
    SNR>65dB
    Amplifier sizeD900mm×L600mm×H1130mm
    Servo protection system
    FunctionTemperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss
    Digital vibration controller VCS-2
    Hardware configuration2 simultaneous input channels, 1 output channel
    Control function moduleSine, random, classical shock
    Control computer17’’ original brand computer with LCD monitor, Windows 10
    SoftwareChinese/English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions.
    System accelerator

    Frequency range: 1—7000Hz

    Sensitivity: 30PC/g

    Temperature range: -40 - 180°C

    VT50 vertical extension table
    MaterialMagnesium alloy, surface hardened
    Table size500×500 mm
    Fixed holeM10 rectangular distribution 100MM*100MM, durable and wear-resistant
    Upper limit usage frequencySine 1000 Hz, Random 2000 Hz
    WeightAbout 23Kg
    HG50 horizontal oil film slide table
    MaterialMagnesium alloy, surface hardened
    Table size500×500 mm
    Fixed holeM10 rectangular distribution 100MM*100MM, durable and wear-resistant
    Upper limit usage frequencySine 2000 Hz, Random 2000 Hz
    WeightAbout 29Kg (without connection head)
    B402S cooling fan
    Fan power:4KW
    Fan flow rate:40.8m3/Min
    Electrical requirements
    Power supplyAC 3-phase 380V/50Hz 18 KW
    Compressed air0.6Mpa
    Ground resistance≤4Ω

    Details

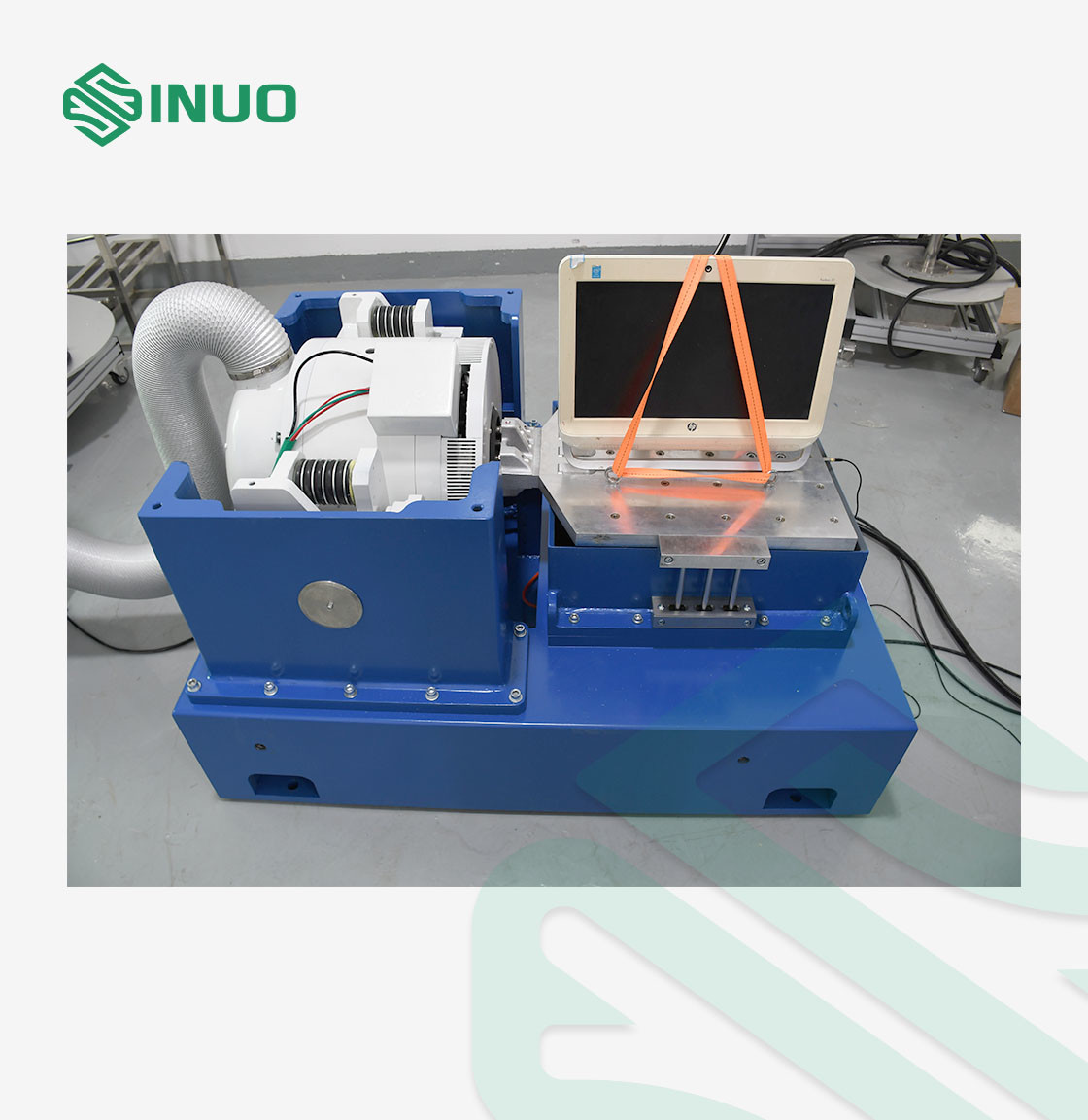

    ISO EV Battery Pack Vibration Testing System Equipment 2800 HzISO EV Battery Pack Vibration Testing System Equipment 2800 Hz
