    IEC60309-1 Charging Interface Cable Tension And Torque Test Equipment


    IEC60309-1 Charging Interface Cable Tension and Torque Test Equipment


    Complied Standards & Clauses



    Conforms to IEC 62196-1:2022, IEC60309-1:2012.


    Product Overview

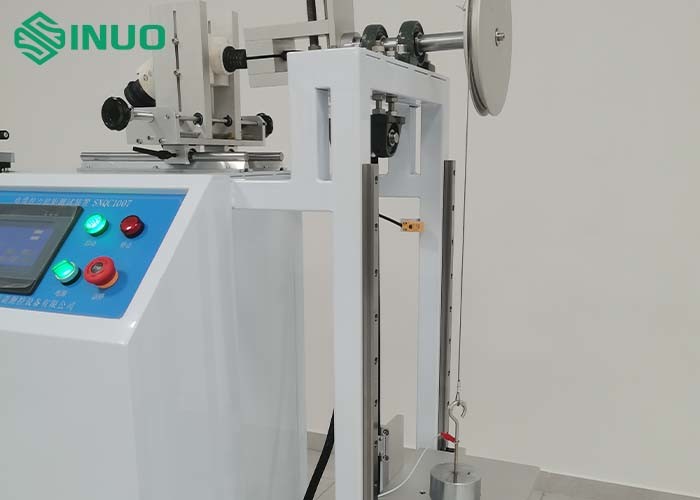

    The pulling force is realized by using a motor-driven eccentric mechanism or screw mechanism, and the motor speed is adjustable to ensure that the time of each pulling force is accurate; the torque is realized by using a cylinder/motor, a tray, a weight and a time relay.Used to test the ability of charging vehicle plug and socket connection cable accessories to withstand specified tensile forces and moments. Weights are used to apply tension, and the weights and torque arms achieve torque. Use PLC to control the number of times of tension applied and the torque test time. The equipment will automatically stop when the number of tests or the test time is reached. After the test, the maximum allowable displacement of the flexible cable of the charging gun connector shall not exceed the standard required value.


    Technical Parameters



    DimensionsAbout W1600*D600*H1450mm
    WeightAbout 180kg
    Test itemsTensile and torque tests on supply plug and/or vehicle plug cables
    Equipment structure schematic diagram

    Refer to Figure 1 schematic diagra

    Control operation modePLC automatic control, touch screen operation
    Drive modeElectric
    Apply tensionMeet the specifications of 160N, 200N, 240N, 250N and 500N.
    Apply torqueOne each meets the specifications of 0.6N·m, 0.7N·m, 1.2N·m, 1.5N·m, 2.3N·m, and 11.0N·m
    Torque wheel100mm(Ф200mm) ±0.5mm
    Tension frequency1 time/s, detect the actual tension time through electrical signal
    Number of pulls1-999999 times, can be preset, default is 100 times ±1 time
    Torque application time0-99H59M59S, can be preset
    Power outage protectionWith power-off data storage and memory function
    FixtureA set of universal clamps
    Weight matching selection table
