    IEC60529 IPX3/4 Spray Test Equipment For Charging Station And Large Products

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN4415
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC60529 IPX3/4 Spray Test Equipment For Charging Station And Large Products


    IEC60529 IPX3/4 Spray Test Equipment for Charging Station and Large Products


    Complied Standards & Clauses



    Conforms to IEC60529:2001,etc.


    Product Overview

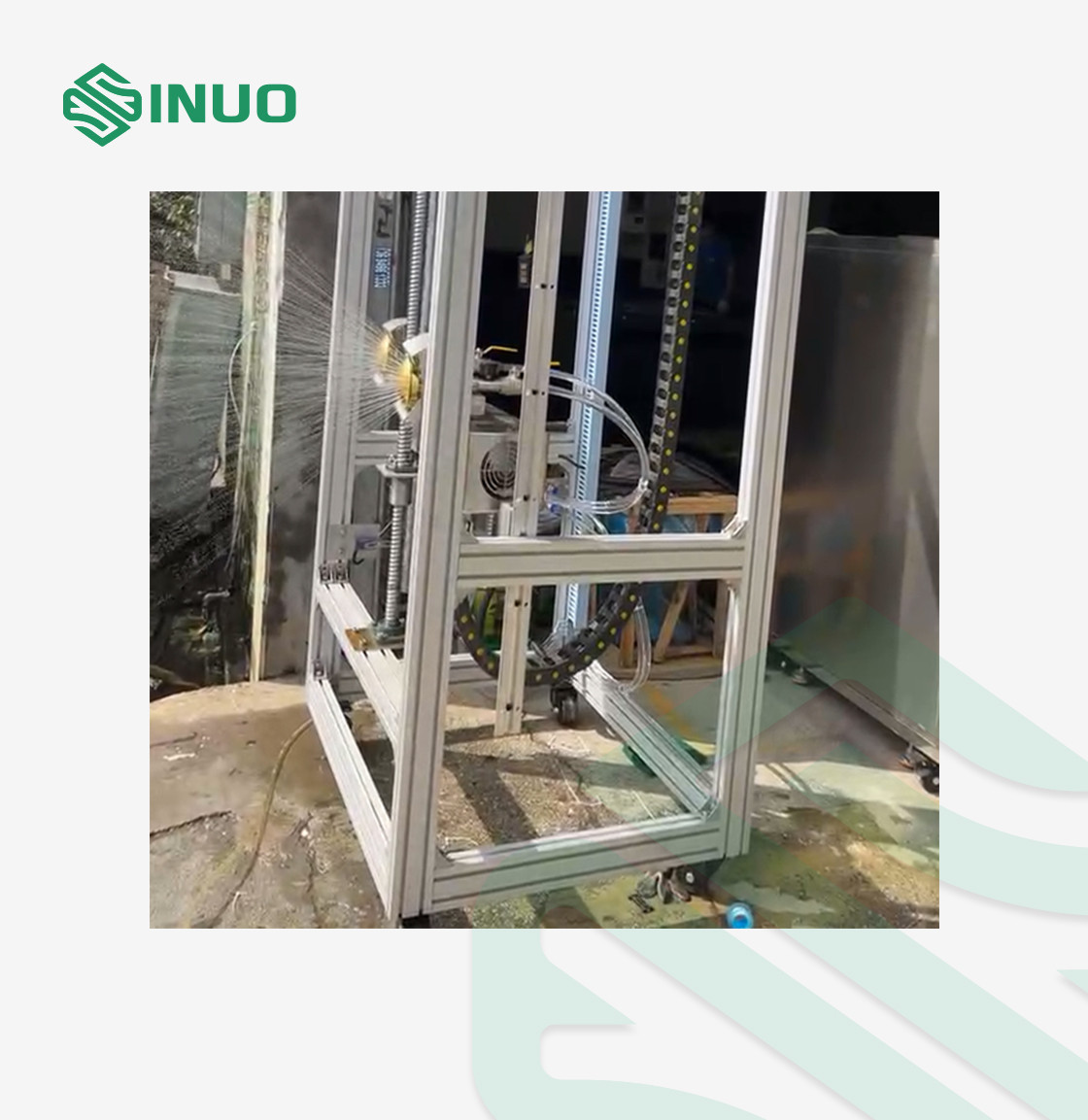

    The test product is placed in an outdoor open space for IPX3-4 level spray testing. IPX3 or IPX4 testing can be selected according to the actual situation of the product. The equipment is divided into an overall combination (control, water tank, water pump and lifting structure), all assembled in on movable devices, water pipes and power supply cords will be dragged behind the movable device during testing. The mobile rack is equipped with two pcs sprinkler heads, and each sprinkler head is equipped with a valve control. The distance between the nozzle and the sample is manually moved and the spray rack is manually pushed forward. The spray frame can move up and down, and the height of the up and down movable distance is 400-3000mm (the maximum spray height is 2700mm). The spray angle is adjustable (0-±45°). The flow rate of water spray is adjusted by the valve (manual adjustment) and displayed by the electromagnetic flowmeter. During testing (test time, up and down running speed, up and down running speed, spray angle) can be set on the touch screen.


    Technical Parameters



    ApplicationSuitable for IPX3/IPX4 testing of large products;
    ApertureØ0.5mm

    Number of holes

    121 pcs(There is one middle hole, the inner two circles of 24 pcs holes have an included angle of 30°, and the outer four circles of 96 pcs holes have an included angle of 15°.)
    Nozzle spherical diameterSф75.5

    Structure

    Adopting a removable baffle structure, the baffle is installed during IPX3 testing and removed during IPX4 testing; It is an aluminum baffle, a stainless steel counterweight.
    Test timeNot less than 3 minutes (1min/m2), the user can set the time (control system control).
    Water pressure150kpa, the user can set the pressure (controlled by the control system).
    Spray rack dimensions900mm*800mm*3000mm(L*W*H)
    Lifting range400mm-2700mm (can be set)
    Lifting speed0-150mm/S (can be set)
    Spray angle range±45° (can be set).
    Scope of applicationSuitable for IPX3, IPX4 nozzle water spraying and automatic control of the entire waterproof equipment;
    Water supply methodConstant flow water supply
    Water tank capacity≤80L
    Test water temperatureRoom temperature
    Flow
    water supply control processThe valve is manually adjusted, the flow meter reads the flow rate, and the flow rate is displayed on the touch screen.
    Flow range12.5L/min (each)
    Flow accuracy±0.5L/min
    Flow meterXYDL-DN15 electromagnetic flowmeter;
    Water pumpStainless steel centrifugal pump;
    Control cabinet
    Flow detectionElectromagnetic flowmeter, flow signal feedback.
    Flow settingManual adjustment
    ControllerDelta PLC
    TouchscreenDelta
    Control functionConstant flow water supply, test time control, up and down running speed control, up and down running distance control, spray angle control.
    Protection functionLeakage protection, overload protection, short circuit protection.
    Electrical componentsUsing well-known brands (Schneider, Izumi, Omron), etc.
    Wiring workerComply with national standards, the electrical panel layout is reasonable, the wiring is firm, and the markings are clear.

    Details



    IEC60529 IPX3/4 Spray Test Equipment For Charging Station And Large ProductsIEC60529 IPX3/4 Spray Test Equipment For Charging Station And Large Products
