    Water Booth Rain And Dry Test System For Outdoor Motor Vehicles

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1001
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Water Booth Rain And Dry Test System For Outdoor Motor Vehicles


    Water Booth Rain and Dry Test System for Outdoor Motor Vehicles


    Complied Standards & Clauses



    Conforms to QC/T476-2007 "Rainproof Sealing Limits and Test Methods for Passenger Vehicles" QC/T911-2013 Electric Energy Vehicles.

    Product Overview



    The purpose of this test room is mainly to test the ability of the tested product to prevent rainwater penetration under rain conditions and its rainproof performance during or after being rained. This test equipment is mainly used to assess whether the housing/seals of electrical and electronic products can ensure the good working performance and technical status of the equipment and components after or during the water test. At the same time, the product may be affected by water during transportation or use, providing a reference basis for product technical standards.

    Technical Parameters


    Rain intensityThe front of the vehicle body (12±1) mm/min; the side, rear and top of the vehicle body (8±1) mm/min
    Nozzle spray pressureThe commonly used water spray pressure is 50kpa, which is equal to 3mm/m³ rainfall, 100kpa, which is equal to 6mm/m³ rainfall, and 150kpa, which is equal to 8mm/m³ rainfall. The specific rainfall is subject to actual commissioning
    Nozzle pressure

    150kPa±10kPa


    Rain direction0-90° (adjustable)
    Rain time1~600 minutes or more can be set
    Preset rain time1~9999H59M59S can be set
    Pressure gaugeInstall a pressure gauge at the outlet of the branch pipe of the water pump, and use a valve to adjust the pressure
    Flow meterInstall a flow meter at the outlet of the branch pipe from the water pump
    Maximum vehicle size
    1. ~6*2*2.1m (length×width×height)
    Rain test chamber inner frame dimensionsApproximately 7.4×3.4×3.1m (length×width×height)
    Rain test chamber outer frame dimensionsApproximately 7.6×3.8×4.5m (length×width×height)

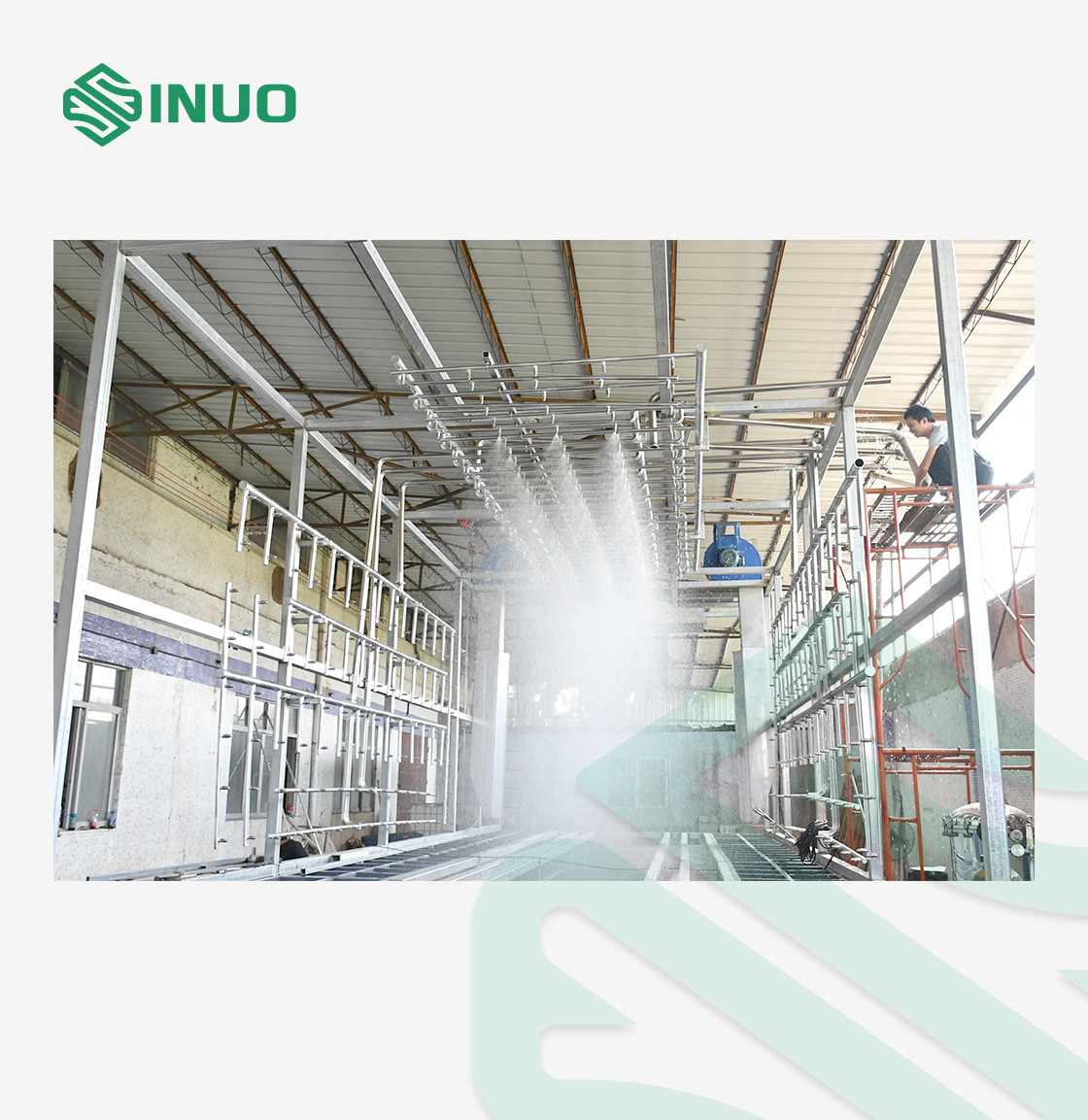

    1. The rainproof sealing test device of the car should ensure that the five surfaces of the car are sprayed from the top, left, right, front and rear directions to avoid dead corners of water spraying, and ensure that the water spraying pressure and flow rate correspond to the standard requirements of various parts of the vehicle. The frame structure of the rain chamber is simple and beautiful while ensuring rust prevention and shock prevention. The entire equipment is easy to operate and convenient for the inspection and maintenance of parts.
    2. The whole can accommodate the inspection of sample vehicle of different sizes at the same time. A spraying system is designed for different sizes of equipment. Each spraying system is equipped with a pressure gauge and a regulating valve to adjust the pressure to ensure uniform water spraying. The entire spraying line is 7.4 meters long. The full-spraying type is adopted. It adopts a profiling full spray type. The nozzles spray water on the vehicle body from five directions: both sides, front and rear, and top, avoiding dead corners of water spray and ensuring that the water spray pressure and flow intensity correspond to each part of the vehicle and meet the national standard requirements.
    3. The structure of the chamber body is designed to be rust-proof, shock-proof, and simple and beautiful at the same time. There are drainage channels at the bottom of the side of the chamber body to ensure no water seepage.

    Details


    Water Booth Rain And Dry Test System For Outdoor Motor VehiclesWater Booth Rain And Dry Test System For Outdoor Motor VehiclesWater Booth Rain And Dry Test System For Outdoor Motor Vehicles
