    IEC 62752 EV Charging Interface Drive Over Testing Machine For Plug Vehicle Connector

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1010
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC 62752 EV Charging Interface Drive Over Testing Machine For Plug Vehicle Connector


    IEC 62752 EV Charging Interface Drive Over Testing Machine for Plug Vehicle Connector


    Complied Standards & Clauses



    Conforms to IEC 62196-1: 2022 clause 33, IEC 62752:2016 clause 9.34, etc.


    Product Overview



    The test equipment is used to check whether a plug or vehicle connector shall have adequate resistance to damage from being driven over by a vehicle, unless it is provided with a cable management system which prevents the accessory from being left on the ground. It is required by Conforms to IEC 62196-1: 2022 clause 33, IEC 62752:2016 clause 9.34, etc.


    Technical Parameters



    Test stationSingle station
    Electrical control methodPLC intelligent integrated control, 7-inch color human-machine touch interface operation
    Operation modeManual or program-controlled operation, can be selected
    Drive over power systemMotor plus worm gear acceleration and deceleration
    Drive over stroke0~2.0m
    Load Carrying

    A. Crushing force (5000±250) N

    B. Crushing force (11000±550) N

    Drive over speed(8±2)km/h, speed adjustable
    Drive over methodIt is driven by a linear motor module to simulate the forward and backward reciprocating motion of rolling tires. This simulates the damage caused by accidental crushing of the charging nozzle head of the charging pile when the car is moving forward or reversing in reality.
    Rolling force adjustmentUsing weights, the force range is adjustable from 5000N-11000N, and the weights are loaded and unloaded by cantilever crane.
    Drive over tires

    1. Equipped with one P225/75 R15 tire and one matching wheel hub, a set of tire inflation devices (inflation interface and air pressure gauge, for 5000N test)

    2. Equipped with 11000N load-bearing tire and a matching wheel hub.

    Drive over tire pressure(220±10) kPa
    Load bearing base plateBase plate with cement/concrete floor, can be equipped with fixing clamps.
    Timing count displayTouch screen design parameters can be set within standard requirements.
    Deceleration methodOur company has designed a braking mechanism to prevent rigid collisions.
    Safety protection



    The whole machine is equipped with a protective fence to prevent the wheels from accidentally deflecting and prevent mechanical injuries to personnel.

    With leakage protection switch.

    With motor overload protection.

    Usage environment

    Power supply: AC220V±10%/60Hz, power 15KW

    Overall dimensions: approximately W4700*D1300*H3000mm; weight: approximately 2400kg

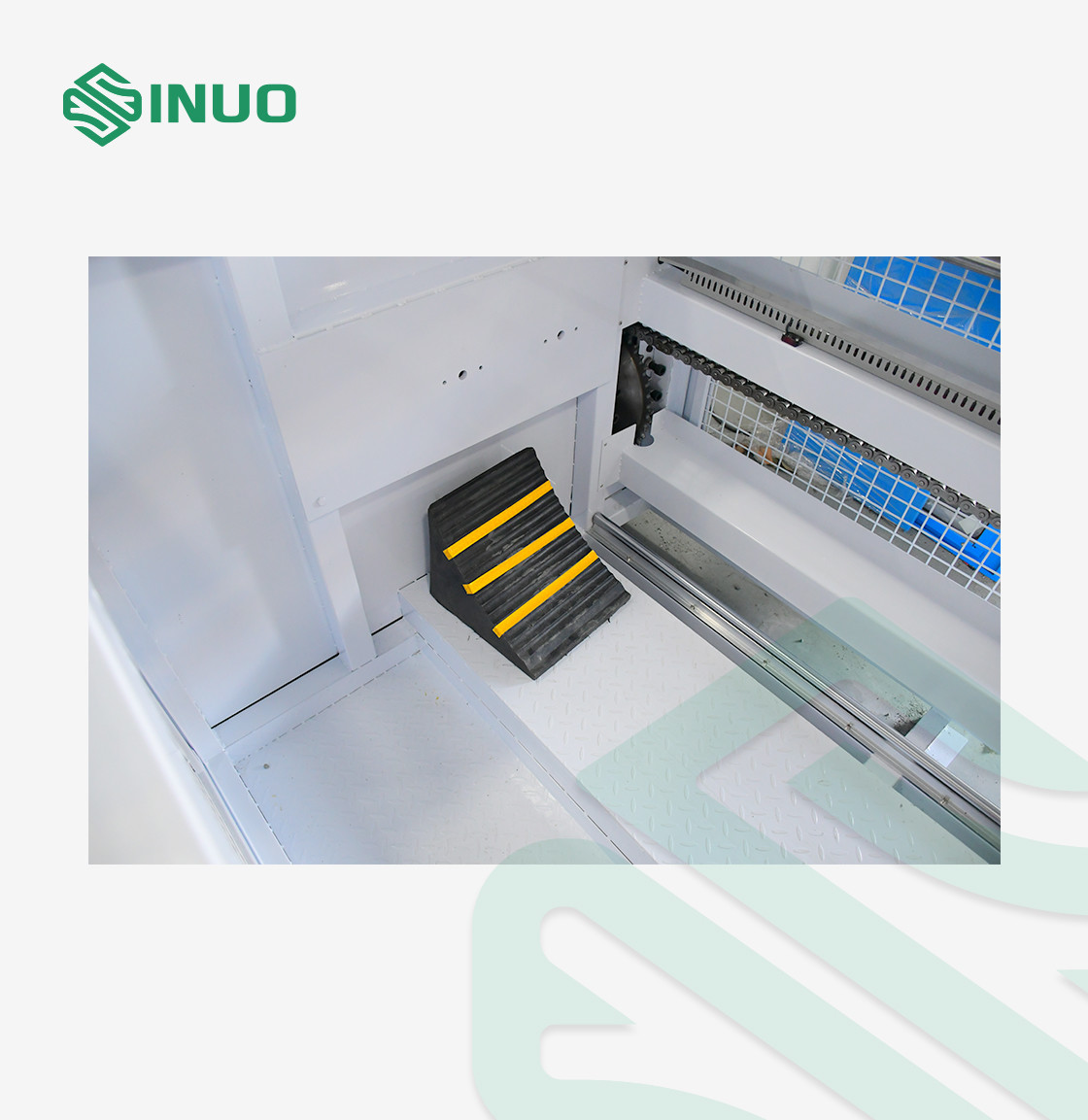

    Details
