    GOST 14254 Sand And Dust Test Chamber 2000L For Electronic Products Car


    GOST 14254 Sand And Dust Test Chamber 2000L for Electronic Products Car

    Complied Standards & Clauses



    Conforms to IEC60529 Fig 2 IP5X and IP6X, GOST 14254-2015 figure 8 and etc.

    Product Overview


    The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

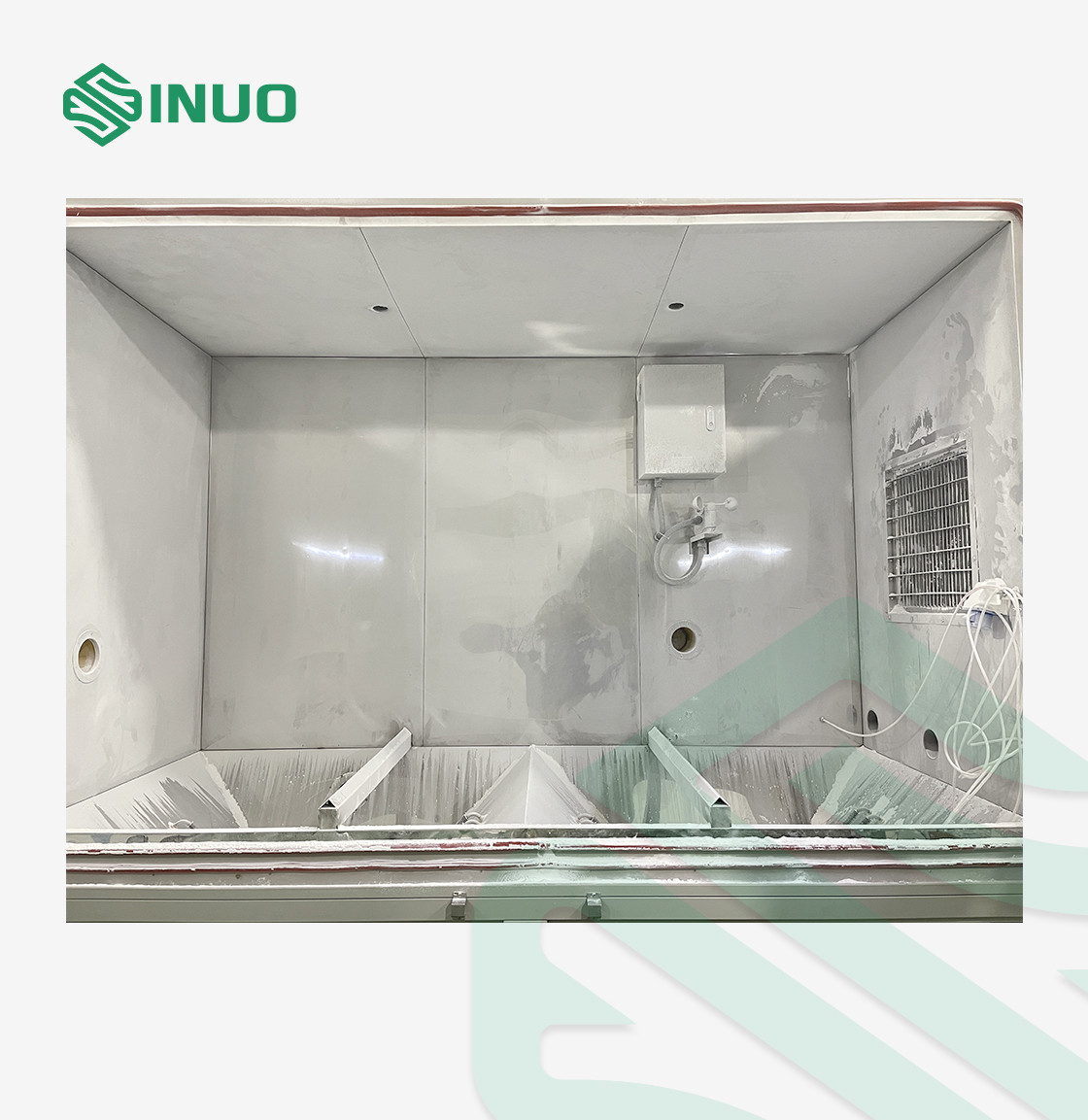

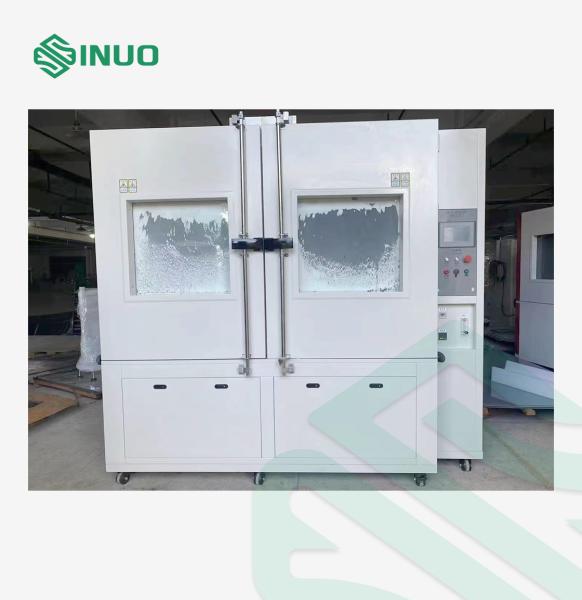

    The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it also has large observation window and manual wiper device. The security protection is good.


    Technical Parameters


    1. Volume and size
    1.1 Inner chamber effective capacityApprox. 2m³
    1.2 Inner chamber sizes2000*1000*1000mm(W*D*H)
    1.3 External chamber sizesApprox. 2400*1500*1900 mm(W*D*H)
    2. Function parameters
    2.1 Working room temperatureRT+10℃~+70℃
    2.2 Product vacuum degree≤60KPa
    2.3 Dust compositionTalcum powder
    2.4 Dust particle composition

    Dry talc that can pass through a square mesh sieve with a mesh size of 75µm and a wire diameter of 50µm
    Additional 32 μm and 250 μm sieves will be offered

    2.5 Dust concentration2~4kg/m3
    2.6 Air flow meterDigital flow meter
    2.7 Air flow rate1.5 m/s (Adjustable range: 0 ~ 4.99 m/s)
    2.8 Time ControlDust blowing control cycle: 1s ~ 99h (adjustable), test time: 1s ~ 99h (adjustable), vibration time: 1S ~ 99H (adjustable)
    2.9 Metal ScreenNominal wire diameter: ≥50μm, standard spacing between wires: ≥75μm.
    2.10 Sand and dust air circulation deviceThe circulating air duct and high-power mixed flow fan have an exhaust volume of 80 times the volume of the sample’s shell, and the exhaust speed does not exceed 60 times the volume of the shell per hour. The air flow speed can make the dust evenly distributed in the test chamber. The air flow in the test chamber is mainly vertical airflow from top to bottom, rather than laminar flow.
    2.11 Sample rack

    2 pcs
    -The presence of one shelf with the possibility of installation at different heights, made of perforated stainless steel panels with a load capacity of at least 50 kg
    -Metal panel of the floor of the test compartment, must provide a load capacity of at least 200 kg

    2.12 Dust drying systemThe equipment is equipped with a dust drying and heating device. There is a heating button on the controller control screen. When the dust is found to be a little damp during the test, the heating button on the control screen can be turned on to start the dust heating device to dry the dust. The button can be turned off after the dust is dry. The drying process will not affect the test process, effectively ensuring the dust concentration in the test chamber and the accuracy of the test data.
    2.13 Dust replacement methodManually change dust, dust can be easily replaced at any time

    Details


    GOST 14254 Sand And Dust Test Chamber 2000L For Electronic Products CarGOST 14254 Sand And Dust Test Chamber 2000L For Electronic Products Car
