    EN 364 Sand And Dust Test Chamber 1000L For Testing Electronic Products

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN441-1000L
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    EN 364 Sand And Dust Test Chamber 1000L For Testing Electronic Products


    EN 364 Sand and Dust Test Chamber 1000L for Testing Electronic Products


    Complied Standards & Clauses

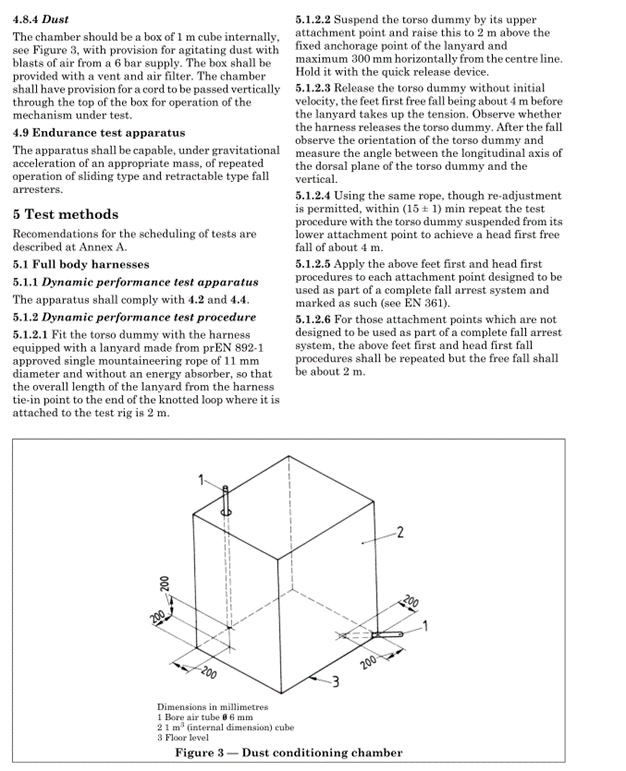

    Conforms to EN 364, IEC60068-2-68-La2, ISO20653-La2, IEC60529, etc.


    Product Overview



    This equipment is suitable for testing electrical and electronic products, automobile and motorcycle parts, and seals to prevent sand and dust from entering the seals and shells in a sand-and-dust environment. It is used to test the performance of electronic and electrical products, automobile and motorcycle parts, and seals in the use, storage, and transportation of sand and dust environments. The purpose of the test is to determine the possible harmful effects of particles carried by airflow on electrical products. The test can be used to simulate open sand and dust air environment conditions induced by natural environment or artificial disturbances such as vehicle movement.


    Technical Parameters



    Inner chamber size1000*1000*1000mm(W*D*H)
    Outer chamber sizeAbout 1250*1450*2200 mm (W*D*H)
    Dust baking temperature rangeRT+10℃~60℃
    Fine dustBelow 75um
    Coarse dustBelow 150um
    Air flow rateNo more than 2m/s
    Dust concentration2kg/m³
    Talc dosage2~5kgm³
    Dust blowing methodTop-down
    Air flow meter1-20L/M
    Negative pressure differential range-10~0kPa adjustable, air pressure can be freely set at -2kPa, -5kPa, -10kPa
    Metal mesh wire diameter50um
    Nominal spacing between lines75um or below 150um
    Shock time1s~99h (adjustable)
    Test time timing1s~99h (adjustable)
    Dust-blowing control cycle1s~99h (adjustable)
    Vacuum time1s~99h (adjustable)
    Test method


    Controller control function(1) Dust blowing time (stop, blow) h/m/s adjustable; (2) Cycle period adjustable; (3) Preset test time: 0s~999h99m99s adjustable; (4) Power-on mode: off-on-off
    Circulation fanClosed alloy low-noise motor. Multi-blade centrifugal fan
