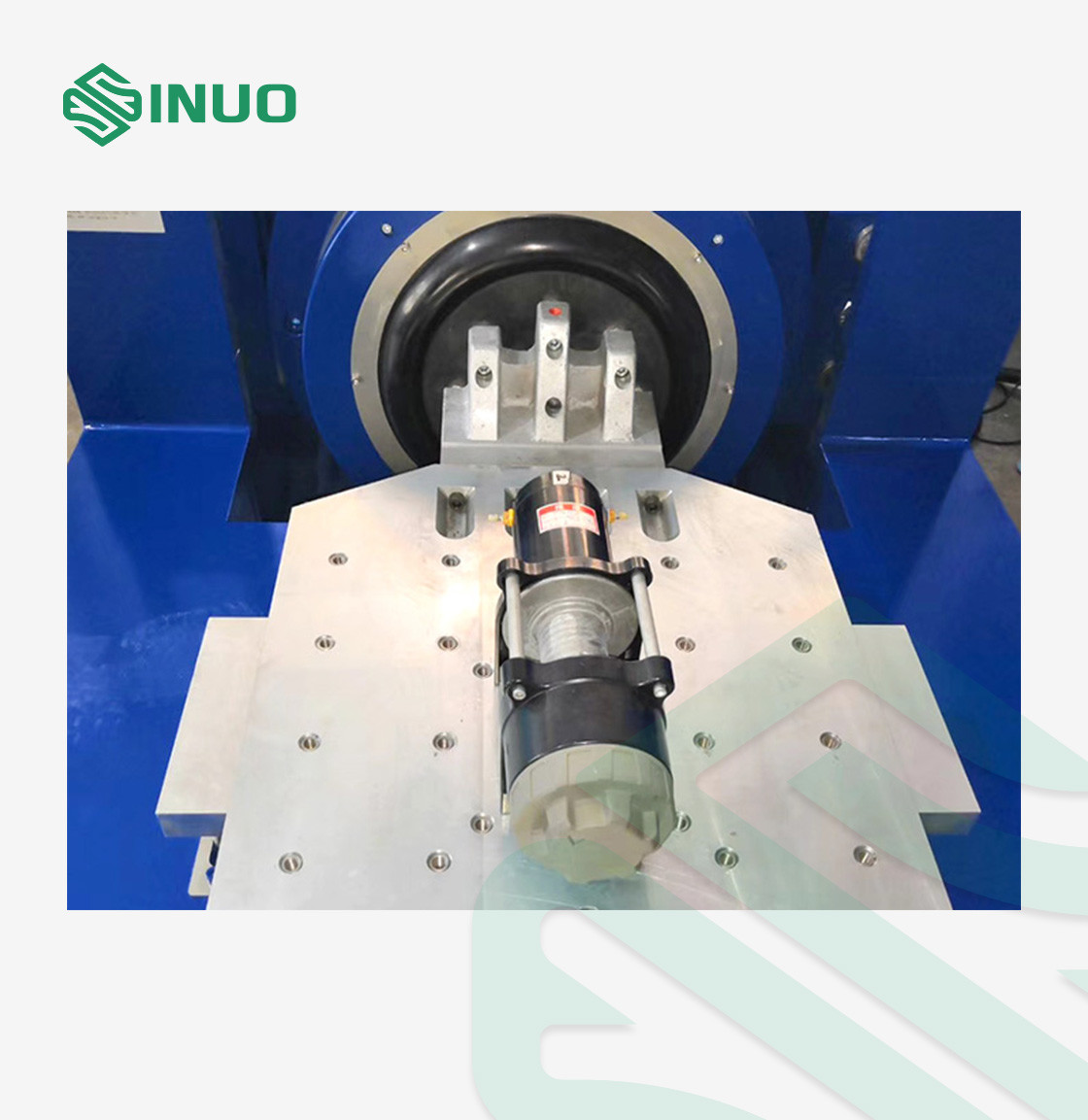

    ISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing System

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN553- EV222VT50VC-2
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    ISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing System


    ISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing System


    Complied Standards & Clauses



    Conforms to ISO16750-3, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM, etc.


    Product Overview



    Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

    Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as ISO16750-3, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.


    Technical Parameters



    A20S32 electromagnetic excitation generator parameters
    Maximum sinusoidal excitation force2200Kg.f peak
    Maximum Random Exciting Force2200Kg.f r.ms
    Maximum impact excitation force4400Kg.f peak
    Frequency Range1~3000 Hz
    maximum displacement51 mm p-p
    Maximum speed2m/s
    maximum acceleration100G (980 m/s2)
    First order resonant frequency3200 Hz±5%
    Maximum load:400 kg
    Vibration isolation frequency:2.5 Hz
    Moving coil diameter:Ф340 mm
    Moving coil weight:22kg
    Screw on the table17×M10
    Flux leakage<10gauss
    Allowable eccentric moment500N.m
    Equipment size

    1080mmL×920mmW×1050mmH

    (not including vertical expansion table)

    Equipment weight1900 kg (Excluding horizontal slide table)
    LA-24K digital switching power amplifier
    Output power22KVA
    Output voltage100V
    Output current220A
    Amplifier efficiency≥90%
    Harmonic distortion0.5% THD @ 500Hz
    SNR>75dB
    Input signal range±10 Vpeak
    Output DC stability<5mVdc
    Amplifier sizeW910mm×D610mm×1150mm
    Amplifier Weight470 KG
    Servo protection system
    FunctionTemperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss

    Details



    ISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing SystemISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing SystemISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing System
