    EV Plug Mechanical Lock Endurance Test Machine For Electrical Accessories

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1005A
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 1 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    EV Plug Mechanical Lock Endurance Test Machine For Electrical Accessories


    EV Plug Mechanical Lock Endurance Test Machine for Electrical Accessories


    Complied Standards & Clauses



    This test equipment meets the requirements of IEC 62196-3: 2020 clause 22 and 23, IEC62196-1: 2020 clause 22 and clause 23, IEC60309-1: 2012 clause 20 and clause 21, etc.


    Equipment Overview



    It is used to verify whether electrical accessories such as electric vehicle charging interfaces, industrial plugs, socket-outlets and couplers can withstand the mechanical, electrical and thermal stresses that occurred during normal operation without excessive wear or other harmful effects.

    The servo motor drives the mechanism to make the test samples repeat insertion and withdrawal actions. An external load can be used for the breaking capacity test. The power on / off time, test speed, stroke, and angle can all be preset on the touch screen.


    Technical Parameters



    Samples and restrictionsElectric vehicle charging interfaces, industrial plugs, sockets and couplers
    Test useIt is used to test whether electrical accessories such as electric vehicle charging interfaces, industrial plugs and sockets, and couplers can withstand the mechanical stress, electrical stress and thermal stress that occur during normal use without excessive wear or other harmful effects, with the purpose of verifying their reliability.
    Test principleThe servo motor drive mechanism is used to perform linear plug-and-pull repetitive actions on the sample, and an external load can be connected for on-off testing. Power on and off time, test speed, stroke, and angle can all be preset through the touch screen.
    Structure and featuresIt adopts an integrated frame, driven by a servo motor, precision ball screw and synchronous belt transmission, color touch screen operation and powerful digital display function, PLC intelligent control system; it also uses a three-axis adjustable clamp, suitable for charging gun interface life span test.
    Usage environment

    Power supply: AC220V±10%/50-60Hz, 2Kw, working temperature 0-40℃, humidity 30%-90%;

    Overall dimensions: approximately W1000*D750*H1200mm; weight: approximately

    150kg

    Test contents

    a) Breaking and capacity;

    b) Normal operation

    Test sample rangeAC and DC charging gun
    Test stationSingle station
    Electrical control methodMitsubishi PLC intelligent integrated control, 7-inch color human-machine touch interface operation
    Operation modeManual or program-controlled operation
    FunctionIt has the function of simulating the normal operation of the charging interface, which can realize the plug-in and pull-out operation of the charging interface, also has the programmable setting of test speed, test time and test times
    Drive modeThe servo motor drives the plugging and unplugging movements and the rotating and liquid-wetting movements, and the auxiliary cylinder realizes the opening and closing of the switch interlocking mechanism.
    Sample fixture and clamping method

    Mechanical clamping, X/Y/Z three-dimensional adjustable clamp, adjustable clamping point position, universal clamp suitable for national standard, American standard, European standard AC/DC charging interfaces


    Automatic flipEquipped with an automatic flipping mechanism at the charging gun clamp, which can be flipped 90º, and the flip holding time can be set arbitrarily within the range (0 ~ 600) s, which can achieve the testing of solution dip for IEC 62196-1:2022 clause 23.3.2.
    Number of trials0~999999 times, can be preset, automatically stops when the count reaches the set value
    Details

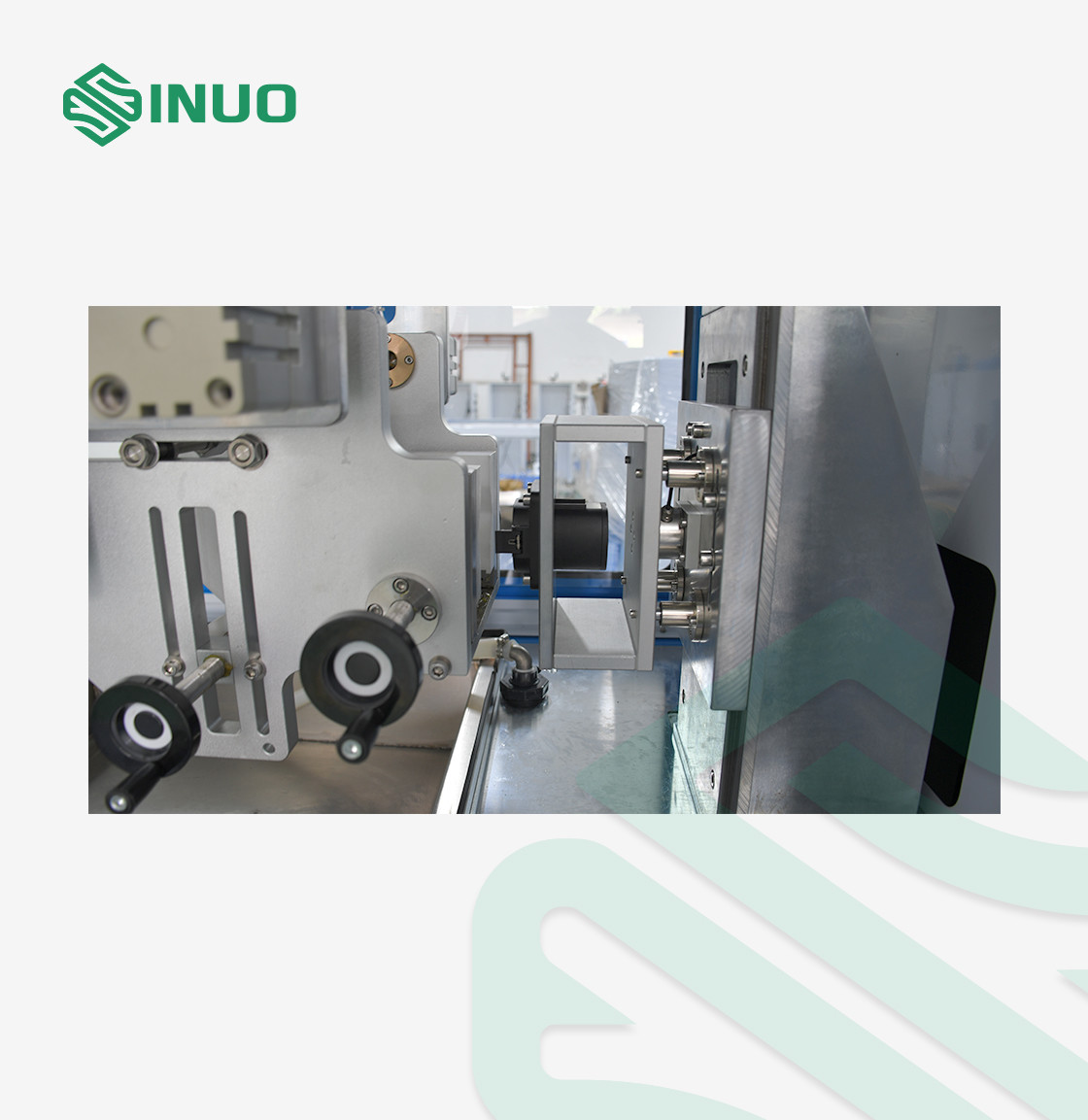

    EV Plug Mechanical Lock Endurance Test Machine For Electrical AccessoriesEV Plug Mechanical Lock Endurance Test Machine For Electrical Accessories
