ISO20653 Outdoor ESS System IPX5 Waterproof Spray Test System

Complied Standards & Clauses

Conforms to IEC 60529:2013, ISO20653:2006, IEC60068-2-18:2000, etc.

Equipment Overview

This product is designed for testing electrical products to assess whether the enclosures and seals can maintain the equipment and components' performance in rain environments. The product adopts a scientific design, enabling it to realistically simulate various environmental conditions such as drip, rainfall, splash, and water spray. With an advanced control system and the application of variable frequency technology, the rotation angle of the rainfall specimen rack, the swing angle of the spray arm, and the spray volume frequency can all be automatically adjusted.

Technical Parameters

IPX5 parameters
Number of spray nozzles	Six IPX5 nozzles.
Inner diameter of spray hole	φ6.3 mm(IPX5)
IPX5 spray nozzle
Water spray flow	12.5±0.625(L/min)(IPX5)
Spray distance	The sample is 2.5 to 3 meters away from the nozzle, and the distance is controlled by the tester.
Pipe diameter	One piece of 1/2-inch soft pressure pipe and one piece of 1-inch soft pressure pipe.
Nozzle connection hose	Imported transparent hose with stainless steel wire
IPX5 nozzle bracket	Nozzle height and angle can be adjusted manually
Water spray test time	At least 3 minutes or more (adjustable)
Water spray pressure	30～100kpa (adjust according to required flow rate)

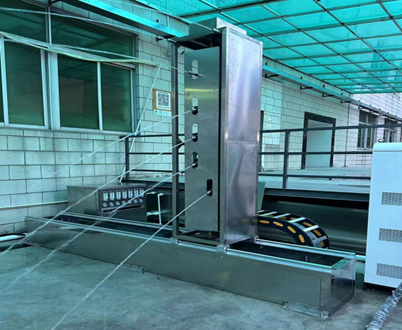

Automatic spray system	1. The spray rack is made of formed aluminum profiles, with a set of IPX5 up and down swinging nozzles, which are independently controlled. 2.The movable IPX5 spray nozzle system includes a total of 6 pcs of spray nozzles. One of the IPX5 spray nozzles is positioned at the top for testing the top of the energy storage cabinet. The remaining 5 pcs of IPX5 spray nozzles are located in the middle of the system, each capable of vertical (up and down) swinging with a swing angle of ±15°. 3.There are 6 pcs nozzles in total, each equipped with a mechanical flow meter, with individual flow meters controlling the flow for each nozzle. (The picture for reference only)
Turntable system
Turntable diameter	4000 mm
Turntable load	1T
Turntable speed	1～5 R/min (adjustable)
Water tank parameters
Water tank size	1000×3000×1000mm(W*D*H)
Water tank material	SUS304 stainless steel
Water level	Transparent hose, with stainless steel ruler to observe water level, ruler height 1.5m, ruler accuracy: 1mm
Water tank level control	Stainless steel float, overflow hole
Mobility	Four pcs swivel casters for easy movement, with brakes.
Water tank cover	1 pcs
